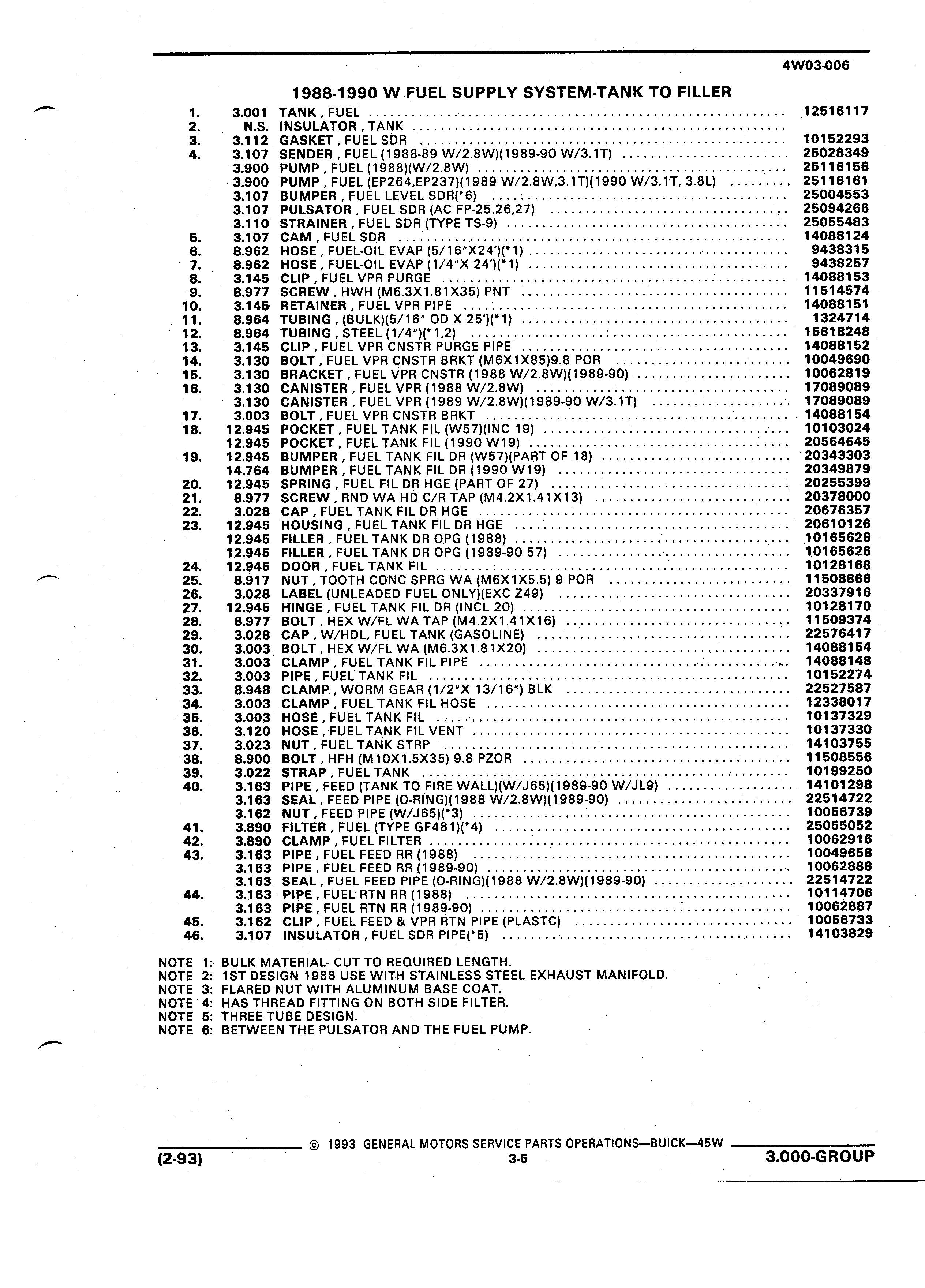

4W03 006 1988 1990 W FUEL SUPPLY SYSTEM TANK TO FILLER 1 3 001 TANK FUEL 12516117 2 N S INSULATOR TANK 3 3 112 GASKET FUEL SDR 1 0152293 4 3 107 SENDER FUEL 1988 89 W 2 8W 1989 90 W 3 1T 25028349 3 900 PUMP FUEL 1988 W 2 8W 25116156 3 900 PUMP FUEL EP264 EP237 1989 W 2 8W 3 1T 1990 W 3 1T 3 8L 25116161 3 107 BUMPER FUEL LEVEL SDR 6 25004553 3 107 PULSATOR FUEL SDR AC FP 25 26 27 25094266 3 110 STRAINER FUEL SDR TYPE TS 9 25055483 5 3 107 CAM FUEL SDR 1 4088124 6 8 962 HOSE FUEL OIL EVAP 5 16 X24 1 9438315 7 8 962 HOSE FUEL OIL EVAP 1 4 X 24 1 9438257 8 3 145 CLIP FUEL VPR PURGE 14088153 9 8 977 SCREW HWH M6 3X1 81X35 PNT 11514574 10 3 145 RETAINER FUEL VPR PIPE 14088151 11 8 964 TUBING BULK 5 16 OD X 25 1 1324714 12 8 964 TUBING STEEL 1 4 1 2 L 15618248 13 3 145 CLIP FUEL VPR CNSTR PURGE PIPE 14088152 14 3 130 BOLT FUEL VPR CNSTR BRKT M6X1X85 9 8 POR 10049690 15 3 130 BRACKET FUEL VPR CNSTR 1988 W 2 8W 1989 90 10062819 16 3 130 CANISTER FUEL VPR 1988 W 2 8W 17089089 3 130 CANISTER FUEL VPR 1989 W 2 8W 1989 90 W 3 1T 17089089 17 3 003 BOLT FUEL VPR CNSTR BRKT 14088154 18 12 945 POCKET FUEL TANK FIL W57 NC 19 10103024 12 945 POCKET FUEL TANK FIL 1990 W19 20564645 19 12 945 BUMPER FUEL TANK FIL DR W57 PART OF 18 20343303 14 764 BUMPER FUEL TANK FIL DR 1990 W19 20349879 20 12 945 SPRING FUEL FIL DR HGE PART OF 27 20255399 21 8 977 SCREW RND WA HD C R TAP M4 2X1 41X13 20378000 22 3 028 CAP FUEL TANK FIL DR HGE 20676357 23 12 945 HOUSING FUEL TANK FIL DR HGE 20610126 12 945 FILLER FUEL TANK DR OPG 1988 10165626 12 945 FILLER FUEL TANK DR OPG 1989 90 57 10165626 24 12 945 DOOR FUEL TANK FIL 10128168 25 8 917 NUT TOOTH CONC SPRG WA M6X1X5 5 9 POR 11508866 26 3 028 LABEL UNLEADED FUEL ONLY EXC Z49 20337916 27 12 945 HINGE FUEL TANK FIL DR INCL 20 10128170 28 8 977 BOLT HEX W FL WA TAP M4 2X1 41X16 4 11509374 V 29 3 028 CAP W HDL FUEL TANK GASOLINE 22576417 30 3 003 BOLT HEX W FL WA M6 3X1 81X20 14088154 31 3 003 CLAMP FUEL TANK FIL PIPE 14088148 32 3 003 PIPE FUEL TANK FIL 10152274 33 8 948 CLAMP WORM GEAR 1 2 X 13 16 BLK 22527587 34 3 003 CLAMP FUEL TANK FIL HOSE 12338017 35 3 003 HOSE FUEL TANK FIL 10137329 36 3 120 HOSE FUEL TANK FIL VENT 10137330 37 3 023 NUT FUEL TANK STRP 14103755 38 8 900 BOLT HFH M10X1 5X35 9 8 PZOR 11508556 I 39 3 022 STRAP FUEL TANK 10199250 40 3 163 PIPE FEED TANK TO FIRE WAL L W J65 1989 90 W JL9 14101298 3 163 SEAL FEED PIPE O R NG 1988 W 2 8W 1989 90 22514722 3 162 NUT FEED PIPE W J65 3 10056739 41 3 890 FILTER FUEL TYPE GF481 4 25055052 42 3 890 CLAMP FUEL FILTER 10062916 43 3 163 PIPE FUEL FEED RR 1988 10049658 3 163 PIPE FUEL FEED RR 1989 90 10062888 3 163 SEAL FUEL FEED PIPE O RING 1988 W 2 8W 1989 90 22514722 44 3 163 PIPE FUEL RTN RR 1988 10114706 3 163 PIPE FUEL RTN RR 1989 90 Q 10062887 45 3 162 CLIP FUEL FEED VPR RTN PIPE PLASTC 10056733 46 3 107 INSULATOR FUEL SDR PIPE 5 14103829 NOTE 1 BULK MATERIAL CUT TO REQUIRED LENGTH NOTE 2 IST DESIGN 1988 USE WITH STAINLESS STEEL EXHAUST MANIFOLD NOTE 3 FLARED NUT WITH ALUMINUM BASE COAT NOTE 4 HAS THREAD FITTING ON BOTH SIDE FILTER NOTE 5 THREE TUBE DESIGN J NOTE 6 BETWEEN THE PULSATOR AND THE FUEL PUMP A i1 1993 GENERAL MOTORS SERVICE PARTS 0PERATIONS BU CK 45W 2 93 3 5 3 000 GROUP
