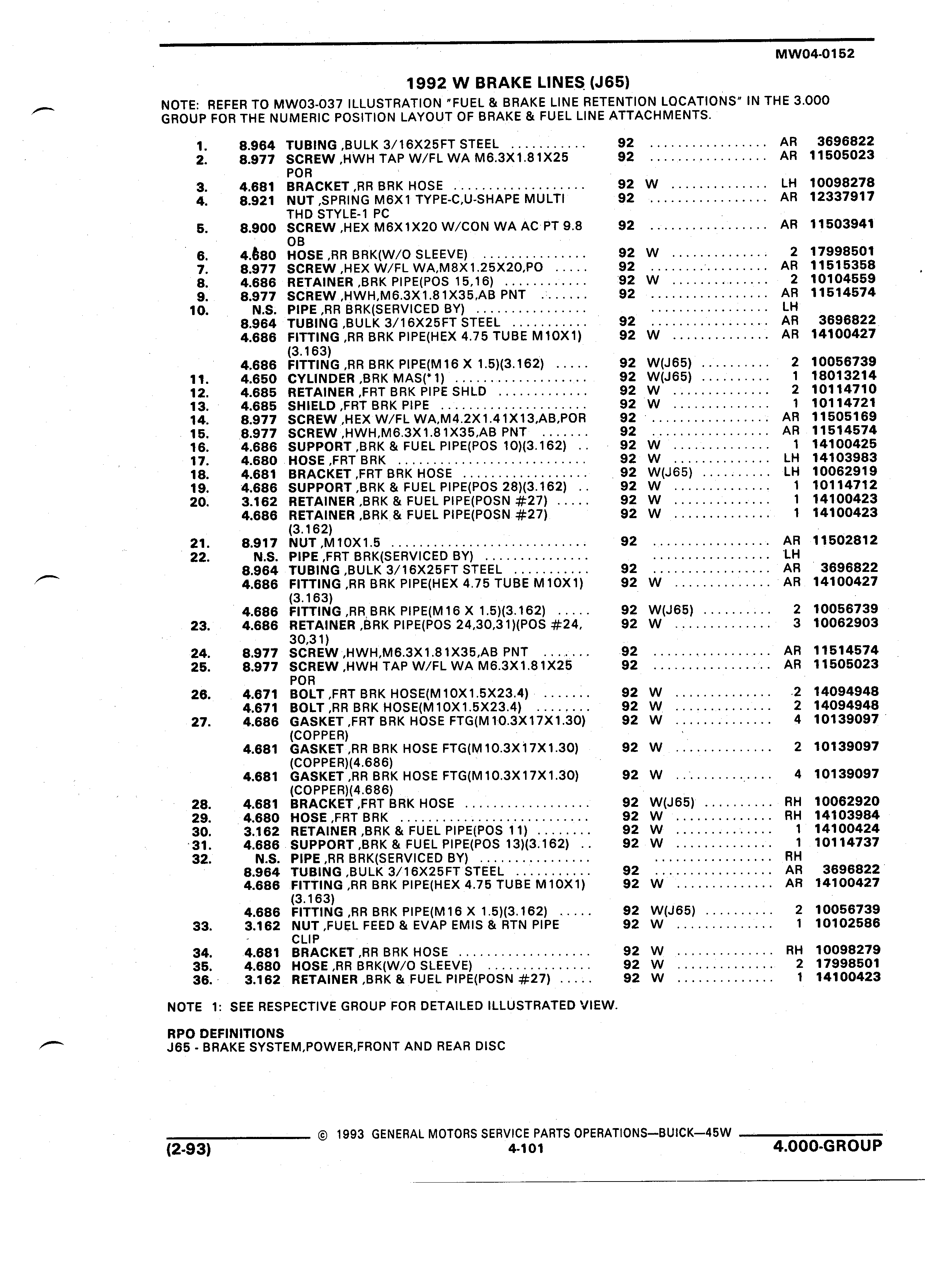

4 MW04 0152 1992 W BRAKE LINES J65 NOTE REFER TO MWO3 037 ILLUSTRATION FUEL BRAKE LINE RETENTION LOCATIONS IN THE 3 000 GROUP FOR THE NUMERIC POSITION LAYOUT OF BRAKE FUEL LINE ATTACHMENTS I 1 8 964 TUBING BULK 3 16X25FT STEEL 92 AR 3696822 2 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 92 AR 11505023 POR 3 4 681 BRACKET RR BRK HOSE 92 W LH 10098278 4 8 921 NUT SPRING M6X1 TYPE C U SHAPE MULTI 92 AR 12337917 THD STYLE 1 PC 5 8 900 SCREW HEX M6X1X20 W CON WA AC PT 9 8 92 AR 11503941 OB 6 4 680 HOSE RR BRK W O SLEEVE 92 W 2 17998501 7 8 977 SCREW HEX W FL WA M8X1 25X20 PO 92 AR 11515358 8 4 686 RETAINER BRK PIPE POS 15 16 92 W 2 10104559 9 8 977 SCREW HWH M6 3X1 81X35 AB PNT 92 AR 11514574 10 N S PIPE RR BRK SERV CED BY LH 8 964 TUBING BULK 3 16X25FT STEEL 92 AR 3696822 4 686 FITTING RR BRK PIPE HEX 4 75 TUBE M1OX1 92 W AR 14100427 3 163 4 686 FITTING RR BRK P PE M16 X 1 5 3 162 92 W J65 2 10056739 11 4 650 CYLINDER BRK MAS 1 92 W J65 1 18013214 12 4 685 RETAINER FRT BRK PIPE SHLD 92 W 2 10114710 13 4 685 SHIELD FRT BRK PIPE 92 W 1 10114721 14 8 977 SCREW HEX W FL WA M4 2X1 41X13 AB POR 92 AR 11505169 15 8 977 SCREW HWH M6 3X1 81X35 AB PNT 92 AR 11514574 16 4 686 SUPPORT BRK FUEL PIPE POS 10 3 162 I 92 W 1 14100425 17 4 680 HOSE FRT BRK 92 W LH 14103983 18 4 681 BRACKET FRT BRK HOSE 92 W J65 LH 10062919 19 4 686 SUPPORT BRK FUEL P PE POS 28 3 162 92 W 1 10114712 20 3 162 RETAINER BRK FUEL PIPE POSN 27 92 W I 14100423 4 686 RETAINER BRK FUEL PIPE POSN 27 92 W 1 14100423 3 162 21 8 917 NUT M10X1 5 92 AR 11502812 22 N S PIPE FRT BRK SERV CED BY LH 8 964 TUBING BULK 3 16X25FT STEEL 92 AR 3696822 4 686 FITTING RR BRK PIPE HEX 4 75 TUBE M1OX1 92 W AR 14100427 3 163 I 4 686 FITTING RR BRK PIPE M16 X 1 5 3 162 92 W J65 2 10056739 23 4 686 RETAINER BRK PIPE POS 24 30 31 POS 24 92 W 3 10062903 30 31 24 8 977 SCREW HWH M6 3X1 81X35 AB PNT 92 AR 11514574 A 25 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 92 AR 11505023 POR 26 4 671 BOLT FRT BRK HOSE M10X1 5X23 4 92 W 2 14094948 4 671 BOLT RR BRK HOSE M10X1 5X23 4 92 W 2 14094948 27 4 686 GASKET FRT BRK HOSE FTG M1 0 3X17X1 30 92 W 4 10139097 COPPER 4 681 GASKET RR BRK HOSE FTG M10 3X17X1 30 92 W 2 10139097 COPPER 4 686 4 681 GASKET RR BRK HOSE FTG M10 3X17X1 30 92 W 4 10139097 A COPPER 4 686 28 4 681 BRACKET FRT BRK HOSE 92 W J65 RH 10062920 29 4 680 HOSE FRT BRK 92 W RH 14103984 30 3 162 RETAINER BRK FUEL PIPE POS 11 92 W 1 14100424 31 4 686 SUPPORT BRK FUEL P PE POS 13 3 162 92 W 1 10114737 32 N S PIPE RR BRK SERV CED BY RH 8 964 TUBING BULK 3 16X25FT STEEL 92 AR 3696822 4 686 FITTING RR BRK PIPE HEX 4 75 TUBE M1OX1 92 W AR 14100427 3 163 4 686 FITTING RR BRK PIPE M16 X 1 5 3 162 92 W J65 2 10056739 33 3 162 NUT FUEL FEED EVAP EMIS RTN PIPE 92 W 1 10102586 CLIP 34 4 681 BRACKET RR BFIK HOSE 92 W RH 10098279 35 4 680 HOSE RR BRK W 0 SLEEVE 92 W 2 17998501 36 3 162 RETAINER BRK FUEL PIPE POSN 27 92 W 1 14100423 NOTE 1 SEE RESPECTIVE GROUP FOR DETAILED ILLUSTRATED VIEW RPO DEFINITIONS V J65 BRAKE SYSTEM POWER FRONT AND REAR DISC 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS BUICK 45W 4 2 93 4 101 4 000 GROUP
