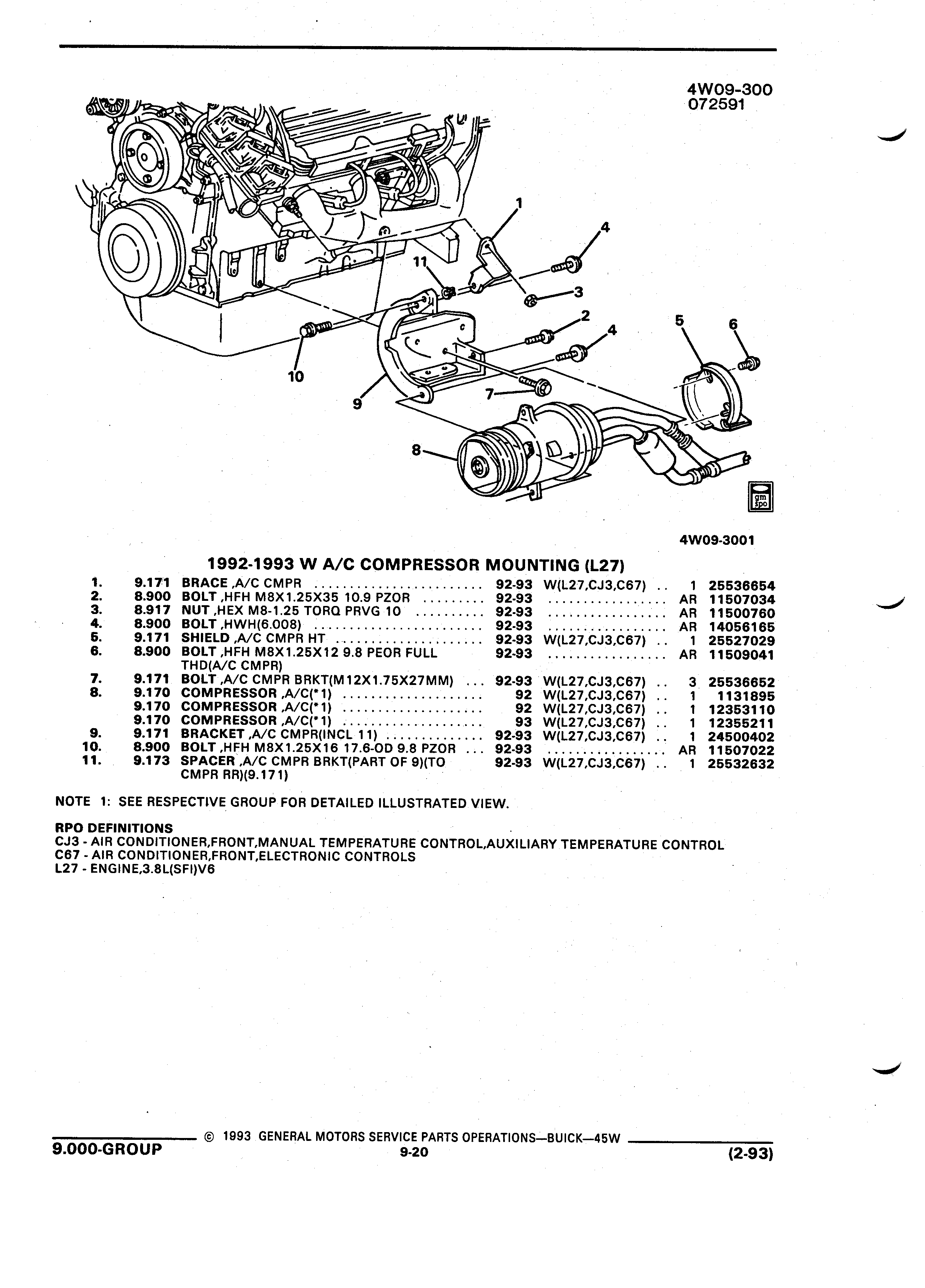

I 4W 9 3OO O72 91 I iw I J SQ 7 IS SM 0 P2 4 4 1 l Mp L ng rm I 4 I A fs J I 11 gl I 29 x 2 5 I N c 4 6 1 Q i U 10 9 1 7 Q 1 I gw 8 Z I I ohm 4 l f QY EH 4W09 3001 I 1992 1993 W A C COMPRESSOR MOUNTING L27 I 1 9 11 1 BRACE A C CMPR 92 93 W L27 CJ3 C67 1 25536654 2 8 900 BOLT HFH M8X1 25X35 10 9 PZOR 92 93 AR 11507034 3 8 917 NUT HEX M8 1 25 TORO PRVG 10 92 93 AR 11500760 4 8 900 BOLT HWH 6 008 92 93 AR 14056165 5 9 171 SHIELD A C CMPR HT 92 93 W L27 CJ3 C67 1 25527029 6 8 900 BOLT HFH M8X1 25X12 9 8 PEOR FULL 92 93 AR 11509041 THD A C CMPR 7 9 171 BOLT A C CMPR BRKT M12X1 75X27MM 92 93 W L27 CJ3 C67 3 25536652 8 9 170 COMPRESSOR A C 1 92 W L27 CJ3 C67 1 1131895 9 170 COMPRESSOR A C 1 92 W L27 CJ3 C67 1 12353110 9 170 COMPRESSOR A C 1 93 W L27 CJ3 C67 1 12355211 9 9 171 BRACKET A C CMPR INCL 11 92 93 W L27 CJ3 C67 1 24500402 10 8 900 BOLT HFH M8X1 25X16 17 6 OD 9 8 PZOR 92 93 AR 11507022 11 9 173 SPACER A C CMPR BRKT PART OF 9 T0 92 93 W L27 CJ3 C67 1 25532632 CMPR RR 9 171 NOTE 1 SEE RESPECTIVE GROUP FOR DETAILED ILLUSTRATED VIEW RPO DEFINITIONS I CJ3 AIR CONDITIONER FRONT MANUAL TEMPERATURE CONTROL AUXlLIARY TEMPERATURE CONTROL C67 AIR CONDITIONER FRONT ELECTRON C CONTROLS L27 ENGINE 3 8L SFI V6 J t 1993 GENERAL MOTORS SERVICE PARTS OPERATlONS BUICK 45W 9 000 GROUP 9 20 2 93
