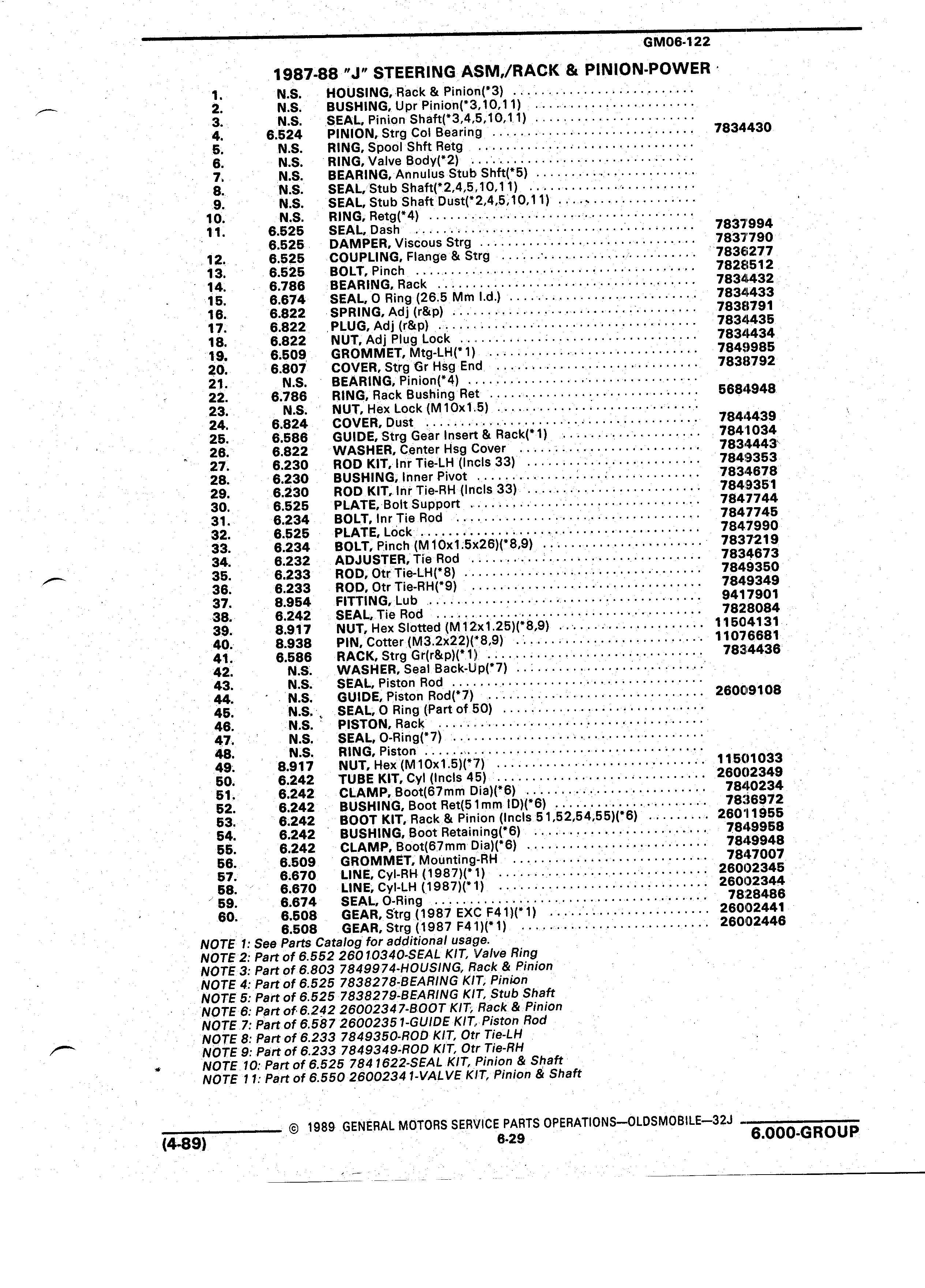

I GM06 122 1987 88 J STEERING ASM RACK PINION POWER I 1 N S HOUSING Rack Pinion 3 4 4 I 2 N S BUSHING Upr Pinion 3 10 11 3 N S SEAL Pinion Shaft 3 4 5 10 1 1 4 6 524 PINION Strg Col Bearing 7834430 5 N S RING Spool Shft Retg I 6 N S RING Valve Body 2 7 N S BEARING Annulus Stub Shft 5 T 8 N S SEAL Stub Shaft 2 4 5 10 1 1 9 N S SEAL Stub Shaft Dust 2 4 5 10 11 10 N S RING Retg 4 4 1 1 6 52 5 SEAL Dash 7837994 I T 6 525 DAMPER Viscous Strg 7837790 l 12 6 525 COUPLING Flange Strg 7836277 13 6 525 BOLT Pinch 7828512 14 6 786 BEARING Rack 7834432 15 6 674 SEAL O Ring 26 5 Mm l d 7834 433 16 6 822 SPRING Adj r p Q 7830791 17 6 822 PLUG Adj r p 7834435 18 6 822 NUT Adj Plug Lock 7834434 19 I 6 509 GROMMET Mtg LH 1 7849985 20 6 807 COVER Strg Gr Hsg End 7838792 21 N S BEARING Pinion 4 I 22 6 786 RING Rack Bushing Ret 5684948 23 N S NUT Hex Lock M 10x1 5 I 24 6 824 COVER Dust V 7844439 A 25 6 586 GUIDE Strg Gear Insert Rack 1 S 7841034 I 26 6 822 WASHER Center Hsg Cover 7834443 27 6 230 ROD KIT Inr Tie LH lncls 33 7840353 28 6 230 BUSHING Inner Pivot L 7834678 29 6 230 ROD KlT lnr Tie RH lncls 33 78419351 30 6 525 PLATE Bolt Support 7847744 31 6 234 BOLT Inr Tie Rod 7847745 32 6 525 PLATE Lock 7847990 33 6 234 BOLT Pinch M 10x1 5x26 8 9 7837219 34 6 232 ADJUSTER Ti e Rod J 7834673 V 35 6 233 ROD Otr Tie LH 8 7 849350 36 6 233 ROD Otr Tie RH 9 Q 7849349 37 8 954 FITTING Lub 9417901 38 6 242 SEAL Tie Rod Q 7 828084 V 39 8 917 NUT Hex Slotted M12x1 25 8 9 11504131 40 8 938 PIN Cotter M3 2x22 8 9 1 1076681 41 6 586 RACK Strg Gr r p 1 7834436 42 N S WASHER Seal Back Up 7 L Q 43 N S SEAL Piston Rod V A 44 N S GUIDE Piston Rod 7 26009108 I 45 N S SEAL O Ring Part of 50 I 46 N S PISTON Rack A 47 N S SEAL O Ring 7 I I 48 N S RING Piston i t 49 8 917 NUT Hex M 10x1 5 7 11501033 50 6 242 TUBE KIT Cyl lncls 45 26002349 51 6 242 CLAMP Boot 67mm Dia 6 7840234 52 6 242 BUSHING Boot Ret 51mm lD 6 7836972 53 6 242 BOOT KIT Rack Pinion lncls 51 52 54 55 6 260 l1955 I 54 6 242 BUSHING Boot Retaining 6 7849958 55 6 242 CLAMP Boot 67mm Dia 6 7849948 56 6 509 GROMMET Mounting RH 7847007 57 6 670 LINE Cyl Rl I 1987 1 26002345 4 58 6 670 LINE CyI LH 1987 1 26002344 59 6 674 SEAL O Ring 78128486 0 60 6 508 GEAR Strg 1987 EXC F41 1 26002441 6 508 GEAR Strg 1987 F41 1 260 02446 NOTE 1 See Parts Catalog for additional usage NOTE 2 Part of 6 552 2601 0340 SEAL KIT Valve Ring NOTE 3 Part of 6 803 7849974 HOUSING Flack Pinion NOTE 4 Part of 6 525 7838278 BEARING KIT Pinion NOTE 5 Part of 6 525 7838279 BEARING KI IZ Stub Shaft I NOTE 6 Part of 6 242 2600234 7 BOOT KIT Rack Pinion NOTE 7 Part of 6 587 26002351 GUIDE KIT Piston Rod I NOTE 8 Part of 6 233 7849350 ROD KIT Otr Tie LH I NOTE 9 Part of 6 233 7849349 ROD KIT Orr Tie RH NOTE 10 Part of 6 525 7841622 SEAL KIT Pinion Shaft NOTE 11 Part of 6 550 26002341 VALVE KIT Pinion Shaft 1989 GENERAL MOTORS SERVICE PARTS OPERAT ONS 0LDSMOBlLE 32J 4 89 i 6 29 I 6 000 GROUP
