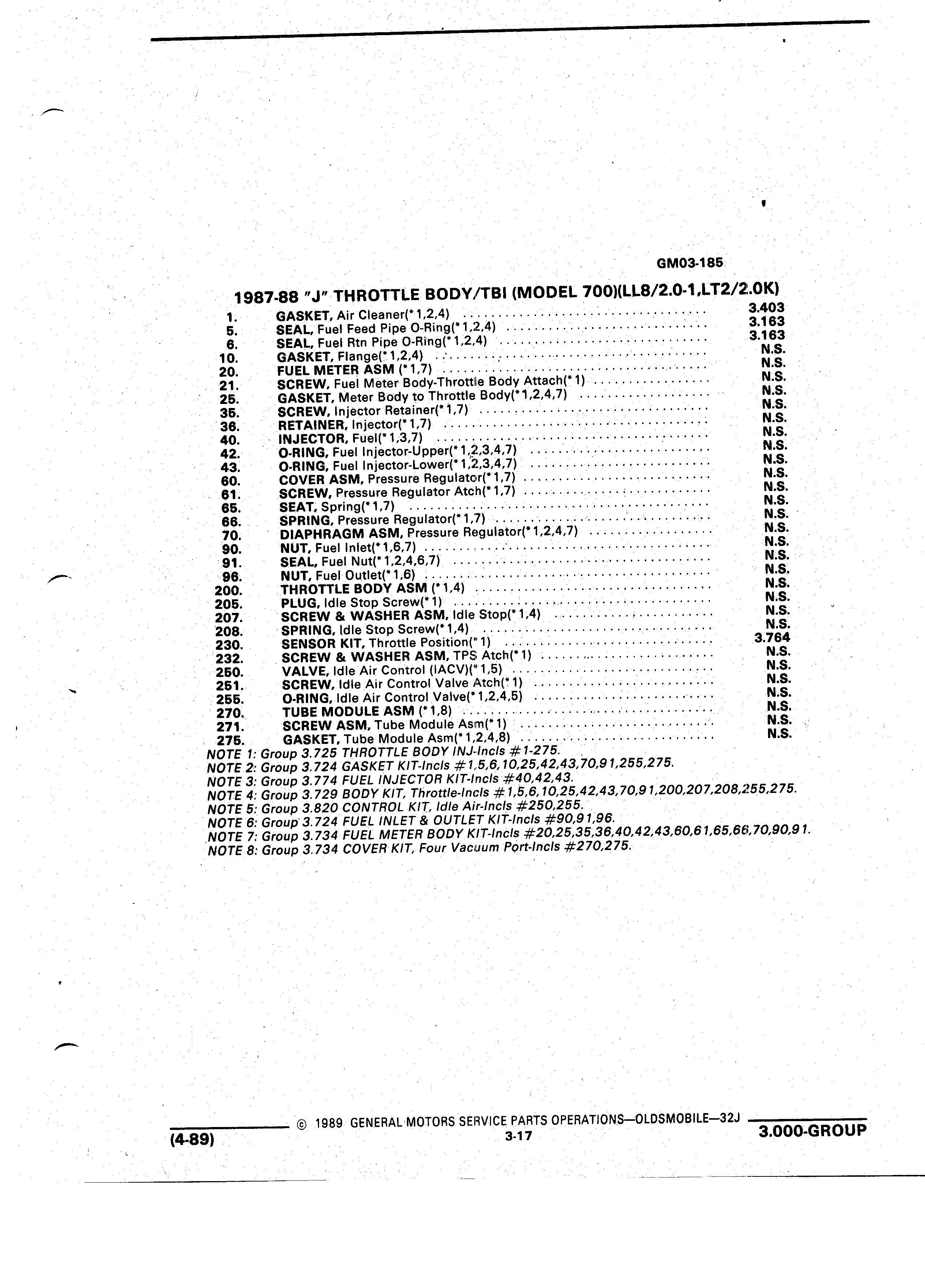

1 V 1 I GM03 185 1987 88 J THROTTLE BODY TBI MODEL 700 LL8 2 0 1 LT2 2i 0K I 1 GASKET Air Cleaner 1 2 4 3 403 5 SEAL Fuel Feed Pipe O Ring 1 ZZ 4 J 3 163 I 6 SEAL Fuel Rtn Pipe O Ri ng 1 2 4 3 163 10 GASKET FIange T 1 2 4 1 N S I 20 FUEL METER ASM 1 7 N S 21 SCREW Fuel Meter Body Throttlle Body Attach 1 N S 25 GASKET Meter Body to Throttle Body 1 2 4 7 N S I 35 SCREW Injector Retainer 1 7 N S 36 RETAINER njector 1 7 N S 40 V INJECTOR Fuel 1 3 7 N 5 P 42 O RING Fuel lnjector Upper 1 2 3 4 7 N S 1 43 O RING Fuel Injector Lower 1 2 3 4 7 N S 60 COVER ASM Pressure Regulat r 1 7 N S I 61 SCREW Pressure Regulator Atch 1 7 N S 65 SEAT Spring 1 7 N S 66 SPRING Pressure Regulator 1 7 V 7 I N S 1 70 DIAPHRAGM ASM Pressure Regulator 1 2 4 7 I N S I 1 90 NUT Fuel lnlet 1 6 7 N S 91 SEAL Fuel Nut 1 2 4 6 7 N S 96 NUT Fuel Ou tlet 1 6 N S 200 THROTTLE BODY ASM 1 4 N S I 205 PLUG Idle Stop Screw 1 1 N S I 207 SCREW WASHER ASM Idle Stop 1 4 N S I I 208 SPRING ldle Stop Screw 1 4 N S 230 SENSOR KIT Throttle Position 1 3 764 232 1 SCREW WASHER ASM TPS Atch 1 N S I 250 VALVE Idle Air Control lACV 1 5 N S 251 SCREW ldle Air Control Valve Atch f 1 N S 255 O RING Idle Air Control Valve 1 2 4 5 N S 270 TUBE MODULE ASM 1 8 Q N S I W 271 SCREW ASM Tube Module Aslm 1 I N S I 1 275 GASKET Tube Module Asm 1 2 4 8 N S I 8 NOTE 1 Group 3 725 THROTTLE BODY INJ Inc s 1 275 NOTE 2 Group 3 724 GASKET K T Incls 1 5 6 10 25 12 43 70 91 255 275 I NOTE 3 Group 3 774 FUEL INJECTOR KIT IncIs 40 42 43 V NOTE 4 Group 3 729 BODY KIT Throttle Incls 1 5 6 10 25 42 43 70 91 200 207 208 JZ55 275 NOTE 5 Group 3 820 CONTROL K T Idle Air Incls 250 255 V NOTE 6 Group 3 724 FUEL INLET OUTLET KIT Incls 90 91 96 NOTE 7 Group 3 734 FUEL METER BODY KIT Incls 20 25 35 36 40 42 43 60 61 65 6EI 70 90 91 I NOTE 8 Group 3 734 COVER KIT Four Vacuum Port ncls 270 275 I f V 1 1989 GENERALMOTOFIS SERVICE PARTS OPERAT ON S OLDSMOB LE 32J 4 89 1 R 3 17 3 000 GROUP
