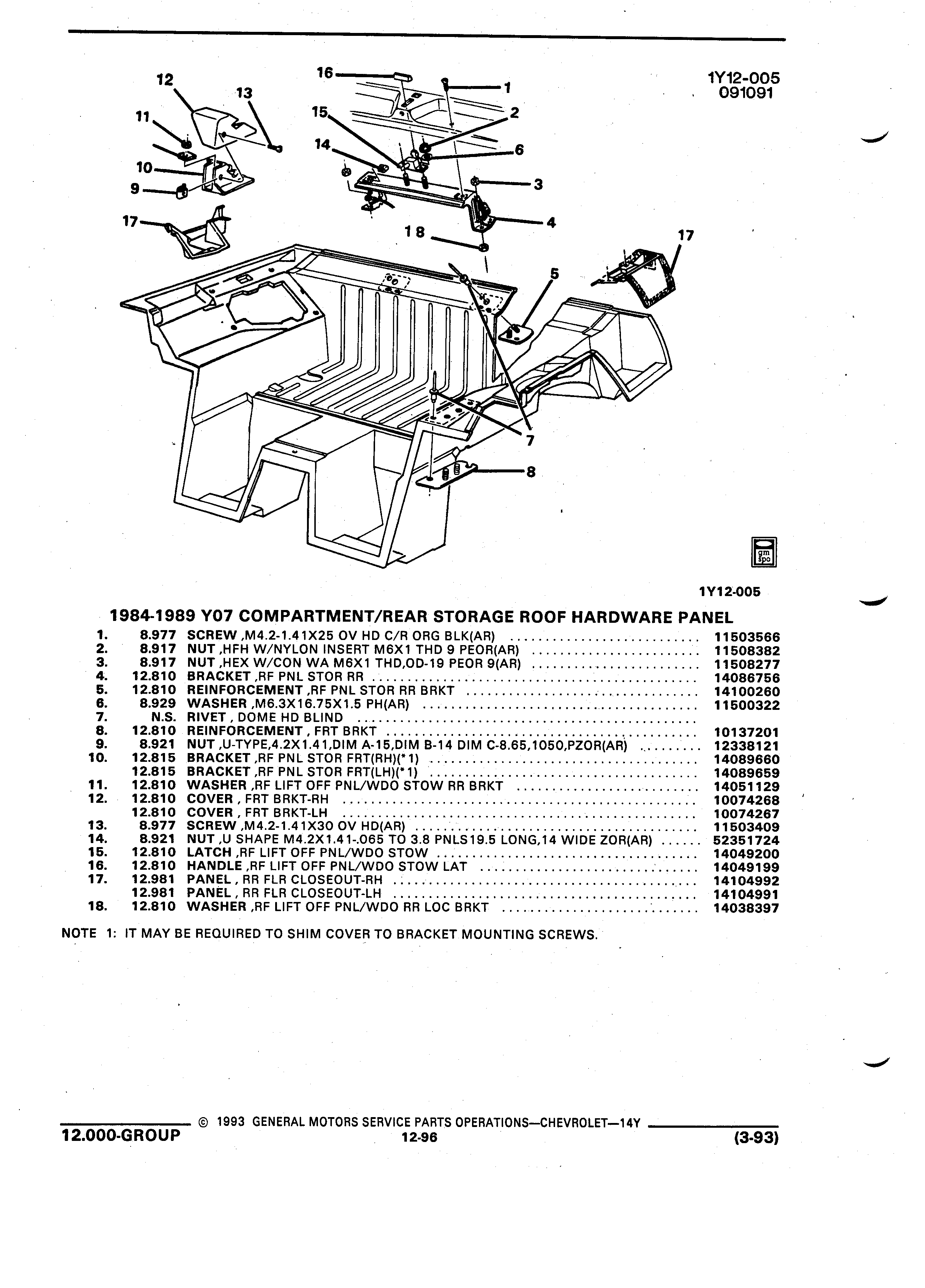

16 A 1Y12 005 12 I 1 091091 1 11 l 15 X Q Z VR 14 A Qi 6 10 I frr rrr rrr 3 RK 17 l I gif 4 1 1 8 I 17 4 1 1 5 V Y f 1 4 T r I 7 O V I g 8 EIB 1Y12Q005 1984 1989 Y07 COMPARTMENT REAR STORAGE ROOF HARDWARE PANEL 1 8 977 SCREW M4 2 1 41X25 OV HD C R ORG BLK AR 11503566 2 8 917 NUT HFH W NYLON INSERT M6X1 THD 9 PEOR AR 11508382 3 8 917 NUT HEX W CON WA M6X1 THD OD 19 PEOR 9 AR 11508277 4 12 810 BRACKET RF PNL STOR RR 14086756 5 12 810 REINFORCEMENT RF PNL STOR RR BRKT 14100260 6 8 929 WASHER M6 3X16 75X1 5 PH AR 11500322 7 N S RIVET DOME HD BLIND 8 12 810 REINFORCEMENT FRT BRKT 10137201 9 8 921 NUT U TYPE 4 2X1 41 DIM A 15 DIM B 14 DIM C 8 65 1050 PZOR AR I 12338121 10 12 815 BRACKET RF PNL STOR FRT RH 1 14089660 12 815 BRACKET RF PNL STOR FRT LH 1 14089659 11 12 810 WASHER RF LIFT OFF PNL WDO STOW RR BRKT 14051129 12 12 810 COVER FRT BRKT RH 10074268 12 810 COVER FRT BRKT LH 10074267 13 8 977 SCREW M4 2 1 41X3O OV HD AR 1 1503409 14 8 921 NUT U SHAPE M4 2X1 41 065 TO 3 8 PNLS19 5 LONG 14 WIDE ZOR AR 52351724 15 12 810 LATCH RF LIFT OFF PNL WDO STOW 14049200 16 12 810 HANDLE RF LIFT OFF PNL WDO STOW LAT 14049199 17 12 981 PANEL RR FLR CLOSEOUT RH 14104992 12 981 PANEL RR FLR CLOSEOUT LH 14104991 18 12 810 WASHER RF LIFT OFF PNL WDO RR LOC BRKT 14038397 NOTE 1 IT MAY BE REQUIRED TO SHIM COVER TO BRACKET MOUNTING SCREWS I 1 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 14Y 12 000 GROUP 12 96 3 93
