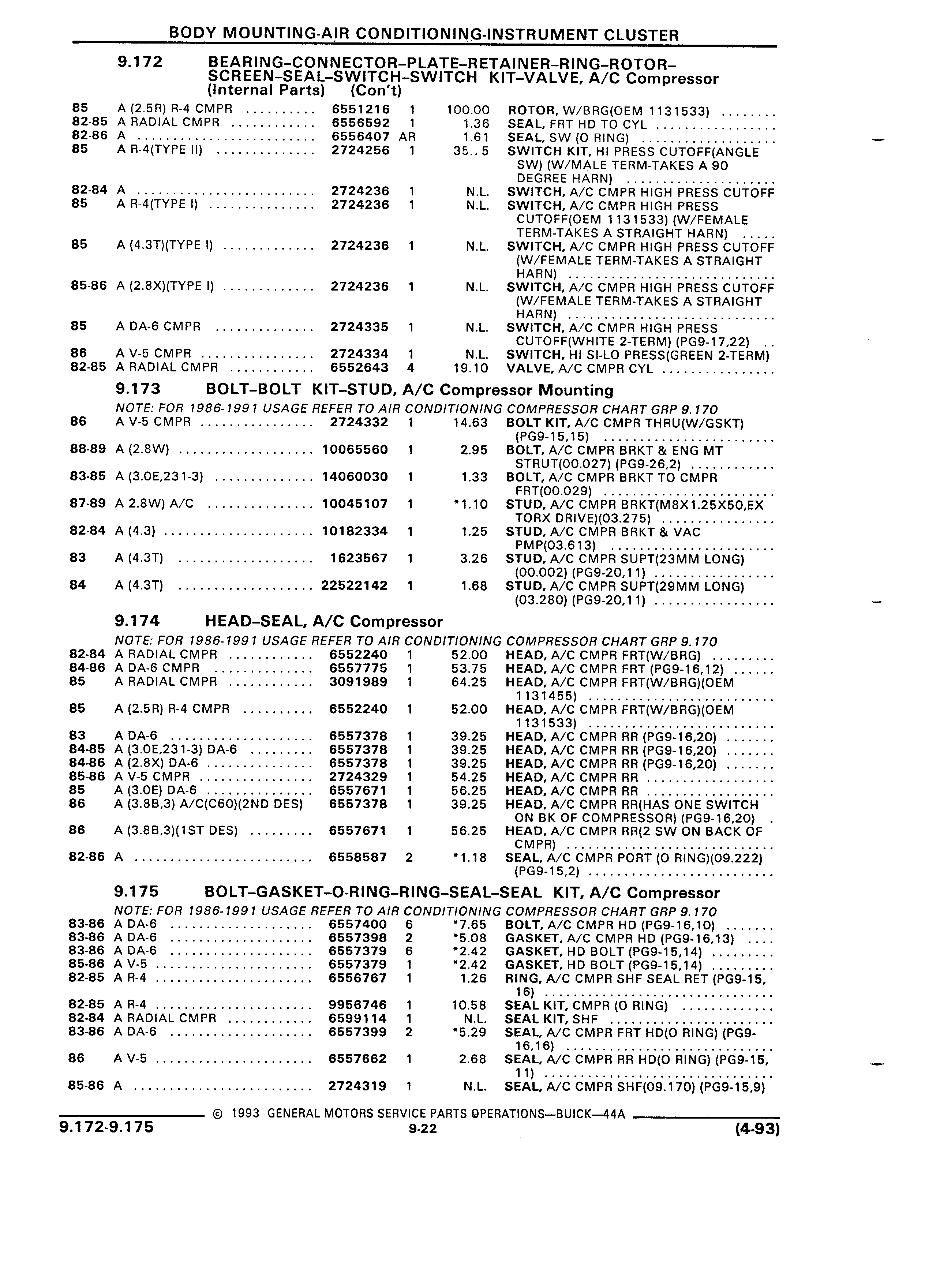

BODY MOUNTING AIR CONDITIONING INSTRUMENT CLUSTER 9 172 BEARING CONNECTOR PLATE RETAlNER R NG ROTOR SCREEN SEAL SWITCH SWITCH KIT VALVE A C Compressor Internal Parts Con t 85 A 2 5R R 4 CMPR 6551216 1 100 00 ROTOR W BRG OEM 1131533 82 85 A RADIAL CMPR 6556592 1 1 36 SEAL FRT HD TO CYL 82 86 A 6556407 AR 1 61 SEAL SW O RING 85 A R 4 TYPE II 2724256 1 35 5 SWITCH KIT HI PRESS CUTOFF ANGLE SW W MALE TERM TAKES A 90 DEGREE HARN 82 84 A 2724236 1 N L SWITCH A C CMPR HIGH PRESS CUTOFF 85 A R 4 TYPE I 2724236 1 N L SWITCH A C CMPR HIGH PRESS CUTOFF 0EM 1131533 W FEMALE TERM TAKES A STRAIGHT HARN 85 A 4 3T TYPE I 2724236 1 N L SWITCH A C CMPR HIGH PRESS CUTOFF W FEMALE TERM TAKES A STRAIGHT HARN 85 86 A 2 8X TYPE I 2724236 1 N L SWITCH A C CMPR HIGH PRESS CUTOFF W FEMALE TERM TAKES A STRAIGHT HARN 85 A DA 6 CMPR 2724335 1 N L SWITCH A C CMPR HIGH PRESS CUTOFF WHITE 2 TERM PG9 17 22 86 A V 5 CMPR 2724334 1 N L SWITCH HI SI LO PRESS GREEN 2 TERM 82 85 A RADIAL CMPR 6552643 4 19 10 VALVE A C CMPR CYL 9 173 BOLT BOLT KIT STUD A C Compressor Mounting NOTE FOR 1986 1991 USAGE REFER TO A R CONDITIONING COMPRESSOR CHART GRP 9 170 86 A V 5 CMPR 2724332 1 14 63 BOLT KIT A C CMPR THRU W GSKT PG9 15 15 88 89 A 2 8W 10065560 1 2 95 BOLT A C CMPR BRKT ENG MT STRUT O0 027 PG9 26 2 83 85 A 3 0E 231 3 14060030 1 1 33 BOLT A C CMPR BRKT TO CMPR FRT 00 029 87 89 A 2 8W A C 10045107 1 1 10 STUD A C CMPR BRKT M8X1 25X50 EX TORX DR VE 03 275 82 84 A 4 3 10182334 1 1 25 STUD A C CMPR BRKT VAC PMP 03 613 83 A 4 3T 1623567 1 3 26 STUD A C CMPR SUPT 23MM LONG 00 002 PG9 20 11 84 A 4 3T 22522142 1 1 68 STUD A C CMPR SUPT 29MM LONG 03 280 PG9 20 11 9 174 HEAD SEAL A C Compressor NOTE FOR 1986 1991 USAGE REFER TO AIR CONDITIONING COMPRESSOR CHART GRP 9 170 82 84 A RADIAL CMPR 6552240 1 52 00 HEAD A C CMPR FRT W BRG 84 86 A DA 6 CMPR 6557775 1 53 75 HEAD A C CMPR FRT PG9 16 12 85 A RADIAL CMPR 3091989 1 64 25 HEAD A C CMPR FRT W BRG OEM 1131455 85 A 2 5R R 4 CMPR 6552240 1 52 00 HEAD A C CMPR FRT W BRG OEM 1131533 83 A DA 6 6557378 1 39 25 HEAD A C CMPR RR PG9 16 20 84 85 A 3 0E 231 3 DA 6 6557378 1 39 25 HEAD A C CMPR RR PG9 16 20 84 86 A 2 8X DA 6 6557378 1 39 25 HEAD A C CMPR RR PG9 16 20 85 86 A V 5 CMPR 2724329 1 54 25 HEAD A C CMPR RR 85 A 3 0E DA 6 6557671 1 56 25 HEAD A C CMPR RR 86 A 3 88 3 A C C60 2ND DES 6557378 1 39 25 HEAD A C CMPR RR HAS ONE SWITCH ON BK OF COMPRESSOR PG9 16 20 86 A 3 8B 3 1ST DES 6557671 1 56 25 HEAD A C CMPR RR 2 SW ON BACK OF CMPR 82 86 A 6558587 2 1 18 SEAL A C CMPR PORT O RING 09 222 PG9 15 2 9 175 BOLT GASKET O RING RING SEAL SEAL KIT A C Compressor NOTE FOR 1986 1991 USAGE REFER TO AIR CONDITIONING COMPRESSOR CHART GRP 9 170 83 86 A DA 6 6557400 6 7 65 BOLT A C CMPR HD PG9 16 10 83 86 A DA 6 6557398 2 5 08 GASKET A C CMPR HD PG9 16 13 83 86 A DA 6 6557379 6 2 42 GASKET HD BOLT PG9 15 14 85 86 A V 5 6557379 1 2 42 GASKET HD BOLT PG9 15 14 82 85 A R 4 6556767 1 1 26 RING A C CMPR SHF SEAL RET PG9 15 16 82 85 A R 4 9956746 1 10 58 SEAL KIT CMPR O RING 82 84 A RADIAL CMPR 6599114 1 N L SEAL KIT SHF 83 86 A DA 6 6557399 2 5 29 SEAL A C CMPR FRT HD O RING PG9 16 16 86 A V 5 6557662 1 2 68 SEAL A C CMPR RR HD O RING PG9 15 11 85 86 A 2724319 1 N L SEAL A C CMPR SHF 09 170 PG9 15 9 1993 GENERAL MOTORS SERVICE PARTS 0PERATl0NS BU CK 44A 9 172 9 175 9 22 4 93
