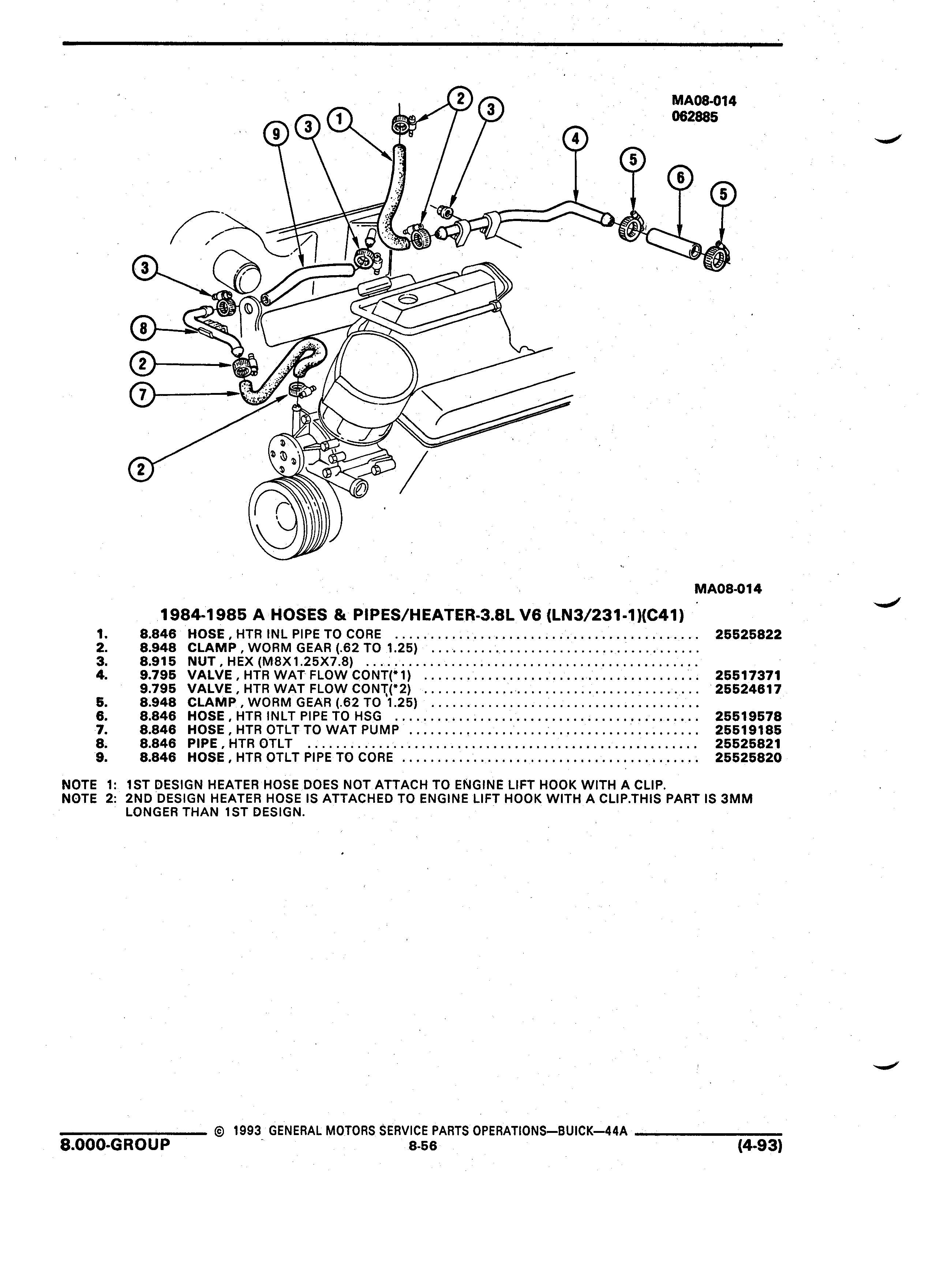

I I Q 9 I MA0a 014 y W 9 9 062885 A H Q g 6 I Y i W I I I 0 I I i M I I I yr Q 9 u I A 1 4 qi Q r r A 5 QQ I 2 AAAE EEEEEEE E I 3 r v 39 w F MAO8 014 n 1984 1985 A HOSES 6 PIPES HEATER 3 8L V6 LN3 231 1 C41 1 8 846 HOSE HTR INL PIPE TO CORE 25525822 2 8 948 CLAMP WORM GEAR 62 TO 1 25 Q 3 8 915 NUT HEX M8X1 25X7 8 4 9 795 VALVE HTR WAT FLOW CONT 1 T 25517371 9 795 VALVE HTR WAT FLOW CONT 2 I 25524617 5 8 948 CLAMP WORM GEAR 62 TO 1 25 6 8 846 HOSE HTR INLT PIPE TO HSG 25519578 7 8 846 HOSE HTR OTLT TO WAT PUMP 25519185 8 8 846 PIPE HTR OTLT 25525821 9 8 846 HOSE HTR OTLT PIPE TO CORE 25525820 NOTE 1 1ST DESIGN HEATER HOSE DOES NOT ATTACH TO ENGINE LIFT HOOK WITH A CLIP NOTE 2 2ND DESIGN HEATER HOSE IS ATTACHED TO ENGINE LIFT HOOK WITH A CLIP THIS PART IS 3MM LONGER THAN 1ST DESIGN V A j af 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS BU CK 44A j 8 000 GROUP 8 56 I 4 93
