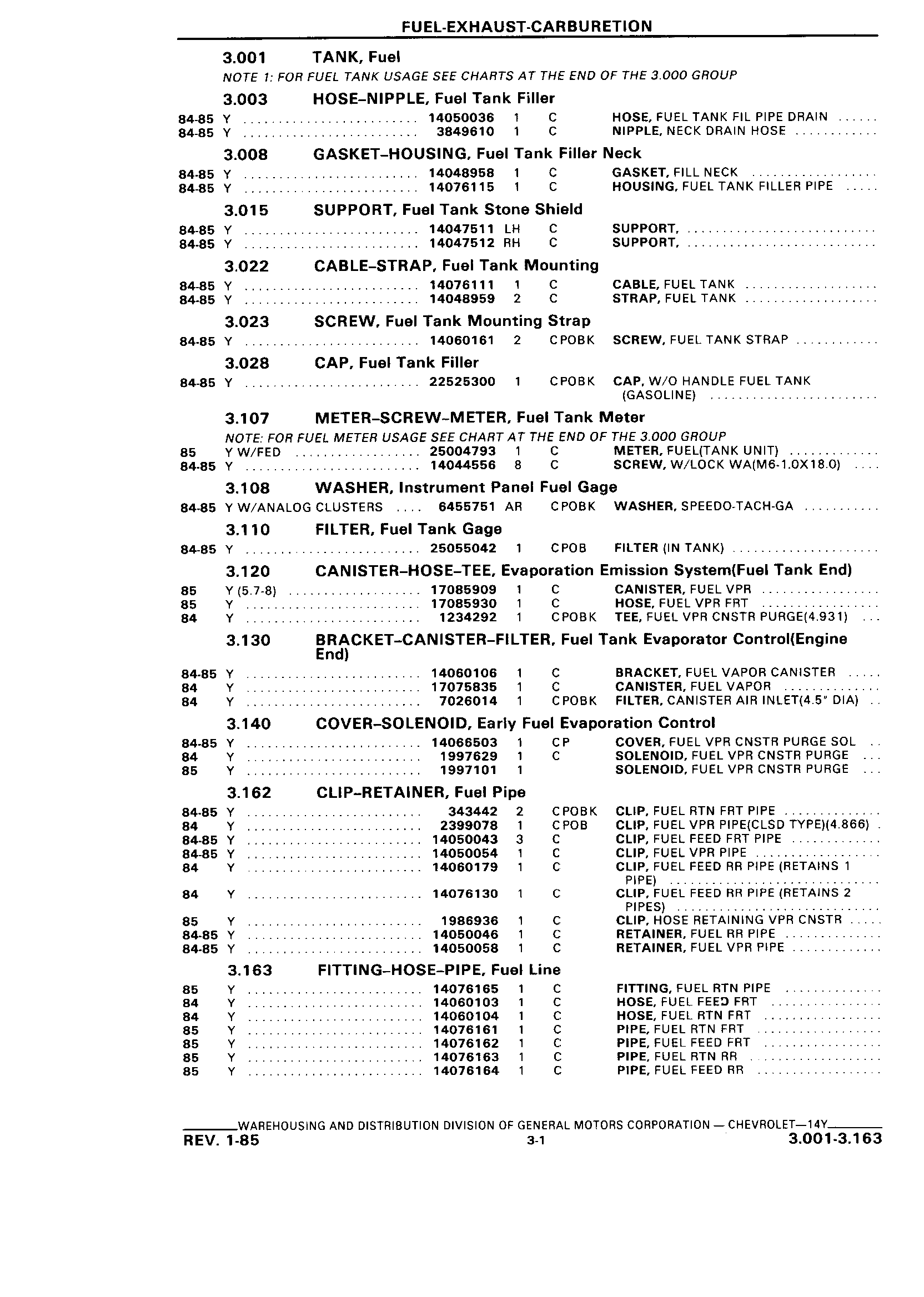

FUEL EXHAUST CARBURETl0N 3 001 TANK Fuel NOTE 1 FOR FUEL TANK USAGE SEE CHARTS AT THE END OF THE 3 000 GROUP 3 003 HOSE NIPPLE Fuel Tank Filler 84 85 Y 14050036 1 C HOSE FUEL TANK FIL PIPE DRAIN 84 85 Y 3849610 1 C NIPPLE NECK DRAIN HOSE 3 008 GASKET HOUSING Fuel Tank Filler Neck 84 85 Y 14048958 1 C GASKET FILL NECK 84 85 Y 14076115 I C HOUSING FUEL TANK FILLER PIPE 3 015 SUPPORT Fuel Tank Stone Shield 84 85 Y 14047511 LH C SUPPORT 84 85 Y 14047512 RH C SUPPORT 3 022 CABLE STRAP Fuel Tank Mounting 84 85 Y 14076111 1 C CABLE FUEL TANK 84 85 Y 14048959 2 C STRAP FUEL TANK 3 023 SCREW Fuel Tank Mounting Strap 84 85 Y 14060161 2 CPOBK SCREW FUEL TANK STRAP 3 028 CAP Fuel Tank Filler 84 85 Y 22525300 1 CPOBK CAP W O HANDLE FUEL TANK GASOLINE 3 107 METER SCREW M ETER Fuel Tank Meter NOTE FOR FUEL METER USAGE SEE CHART AT THE END OF THE 3 000 GROUP 85 Y W FED 25004793 1 C METER FUEL TANK UNIT 84 85 Y 14044556 8 C SCREW W LOCK WA M6 1 0X18 0 3 108 WASHER Instrument Panel Fuel Gage 84 85 Y W ANALOG CLUSTERS 6455751 AR C POBK WASHER SPEEDO TACH GA 3 110 FILTER Fuel Tank Gage 84 85 Y 25055042 1 CPOB FILTER IN TANK 3 120 CANISTER HOSE TEE Evaporation Emission System FueI Tank End 85 Y 5 7 8 17085909 I C CANISTER FUEL VPR 85 Y 17085930 I C HOSE FUEL VPR FRT 84 Y 1234292 I CPOBK TEE FUEL VPR CNSTR PURGE 4 931 3 130 ER3CKET CANISTER FILTER Fuel Tank Evaporator ControI Engine I1 84 85 Y 14060106 1 C BRACKET FUEL VAPOR CANISTER 84 Y 17075835 1 C CANISTER FUEL VAPOR 84 Y 7026014 1 CPOBK FILTER CANISTER AIR NLET 4 5 DIA 3 140 COVER SOLENOID Early Fuel Evaporation Control 84 85 Y 14066503 1 CP COVER FUEL VPR CNSTR PURGE SOL 84 Y 1997629 1 C SOLENOID FUEL VPR CNSTR PURGE 85 Y 1997101 1 SOLENOID FUEL VPR CNSTR PURGE 3 162 CLIP RETAINER Fuel Pipe 84 85 Y 343442 2 CPOBK CLIP FUEL RTN FRT PIPE 84 Y 2399078 1 CPOB CLIP FUEL VPR P PE CLSD TYPE 4 866 B4 85 Y 14050043 3 C CLIP FUEL FEED FRT PIPE 84 85 Y 14050054 I C CLIP FUEL VPR PIPE 84 Y 14060179 1 C CLIP FUEL FEED RR PIPE RETAINS 1 PIPE 84 Y 14076130 1 C CLIP FUEL FEED RR PIPE RETAINS 2 PIPES 85 Y 1986936 I C CLIP HOSE RETAINING VPR CNSTR 84 85 Y 14050046 1 C RETAINER FUEL RR PIPE 84 85 Y 14050058 I C RETAINER FUEL VPR PIPE 3 163 FlTTlNG HOSE PIPE Fuel Line 85 Y 14076165 1 C FITTING FUEL RTN PIPE 84 Y 14060103 1 C HOSE FUEL FEED FRT 84 Y 14060104 I C HOSE FUEL RTN FRT 85 Y 14076161 1 C PIPE FUEL RTN FRT 85 Y 14076162 1 CZ PIPE FUEL FEED FRT 85 Y 14076163 I C PIPE FUEL RTN RR 85 Y 14076164 1 C PIPE FUEL FEED RR WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14Y REV 1 85 3 1 3 001 3 163
