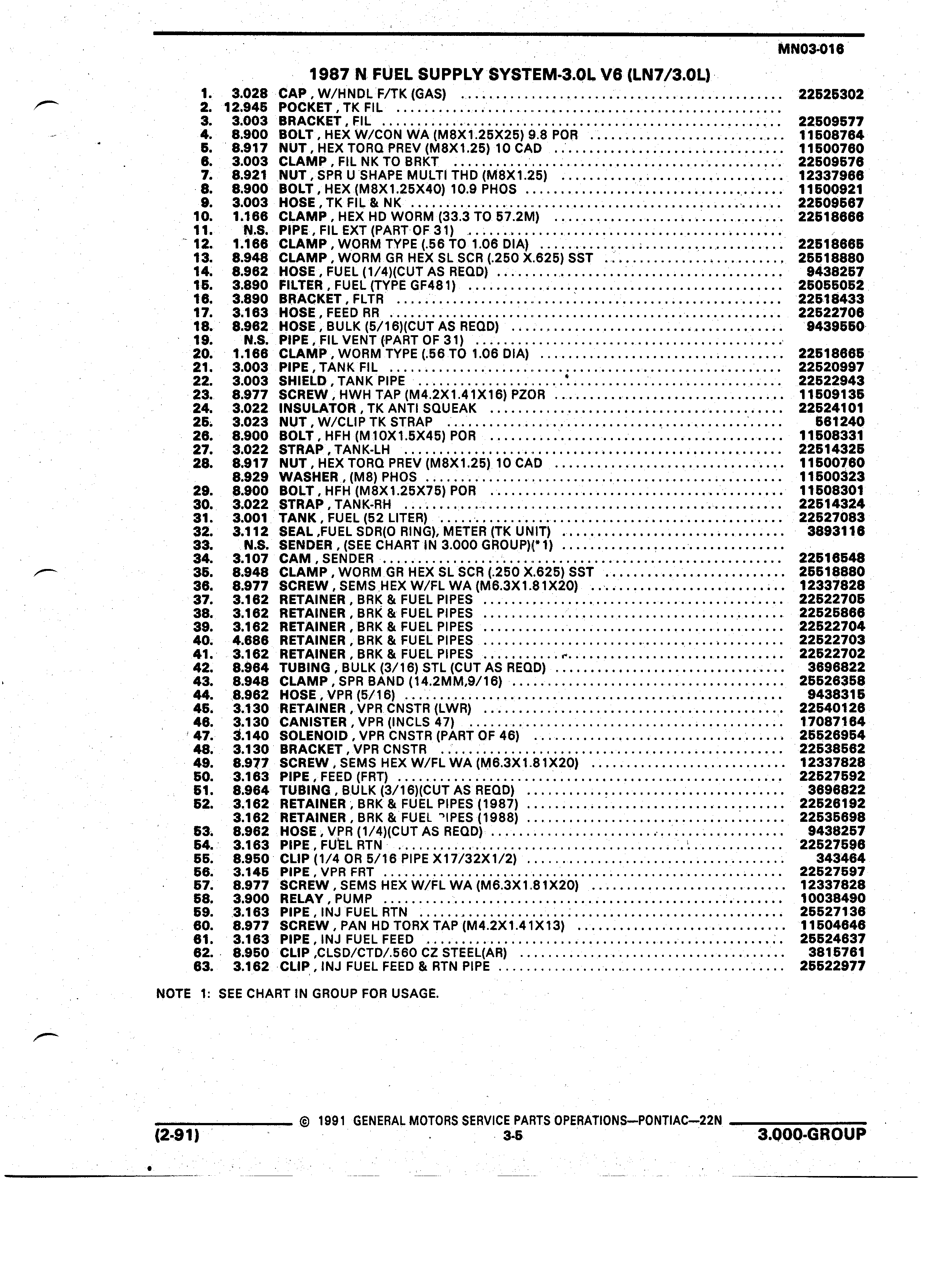

I I I A MN034016 I 1987 N FUEL SUPPLY SYSTEM 3 0L V6 LN7 3 0L I A 1 3 028 CAP W HNDLF TK GAS 1 I 22525302 2 12 945 POCKET TK FIL 3 3 003 BRACKET FIL 22509577 4 8 900 BOLT HEX W CON WA M8X1 25X25 9 8 POR 11508764 5 I 8 917 NUT HEX TORO PREV M8X1 25 10 CAD 11500760 6 3 003 CLAMP FIL NK TO BRKT I 22509576 7 8 921 NUT SPR U SHAPE MULTI THD M8X1 25 V 12337966 I 8 8 900 BOLT HEX M8X1 25X40 10 9 PHOS 11500921 A 9 3 003 HOSE TK FIL NK 22509567 10 1 166 CLAMP HEX HD WORM 33 3 TO 57 2M 22518666 11 N S PIPE FIL EXT PART OF 31 12 1 166 CLAMP WORM TYPE 56 TO 1 06 DIA V 22518665 13 8 948 CLAMP WORM GR HEX SL SCR 250 X 625 SST 25518880 14 8 962 HOSE FUEL 1 4 CUT AS REOD I 9438257 1 5 3 890 FILTER FUEL TYPE GF481 25055052 16 3 890 BRACKET FLTR I I 8225 18433 17 3 163 HOSE FEED RR 22522706 18 I 8 962 HOSE BULK 5 16 CUT AS REOD 9439550 A 19 N S PIPE FIL VENT PART OF 31 20 1 166 CLAMP WORM TYPE 56 TO 1 06 DIA 22518665 21 3 003 PIPE TANK FIL 22520997 I I 1 22 3 003 SHIELD TANK PIPE 1 I 22522943 23 8 977 SCREW HWH TAP M4 2X1 41X16 PZOR 11509135 24 3 022 INSULATOR TK ANTI SOUEAK 22524101 25 3 023 NUT W CLIP TK STRAP 661240 26 8 900 BOLT HFH M 10X1 5X45 POR 11508331 27 3 022 STRAP TAN K LH 22514325 28 8 917 NUT HEX TORO PREV M8X1 25 10 CAD R 5 11500760 8 929 WASHER M8 PHOS 11500323 I 29 8 900 BOLT HFH M8X1 25X75 POR 11508301 30 3 022 STRAP TANK RH 22514324 31 3 001 TANK FUEL 52 LITER 22527083 32 3 112 SEAL FUEL SDR O RING METER TK UNIT 3893116 33 N S SENDER SEE CHART IN 3 000 GROUP 1 34 3 107 CAM SENDER I 22516548 35 8 948 CLAMP WORM GR HEX SL SCR 250 X 625 SST 25518880 36 8 977 SCREW SEMSH EX W FL WA M6 3X1 81X20 12337828 37 3 162 RETAINER BRK FUEL PIPES 22522705 I 38 3 162 RETAINER BRK FUEL PIPES V 22525866 39 3 162 RETAINER BRK FUEL PIPES 22522704 40 4 686 RETAINER BRK FUEL PIPES 22522703 41 V 3 162 RETAINER BRK FUEL PIPES 22522702 Y 42 8 964 TUBING BULK 3 16 STL CUT AS REOD 3696822 43 8 948 CLAMP SPR BAND 14 2MM 9 16 25526358 44 8 962 HOSE VPR 5 16 9438315 45 3 130 RETAINER VPR CNSTR LWR 22540126 46 3 130 CANISTER VPR INCLS 47 17087164 I 47 3 140 SOLENOID VPR CNSTR PART OF 46 25526954 48 3 130 BRACKET VPR CNSTR 22538562 I 49 8 977 SCREW SEMS HEX W FL WA M6 3X1 81X20 12337828 50 3 163 PIPE FEED FRT 22527592 51 8 964 TUBING BU LK 3 16 CUT AS REOD 3696822 52 3 162 RETAINER BRK FUEL PIPES 1987 22526192 3 162 RETAINER BRK FUEL IPES 1988 22535698 I 53 8 962 HOSE VPR 1 4 CUT AS REOD 9438257 54 3 163 PIPE FUEL RTN I 22527596 55 8 950 CLIP 1 4 OR 5 16 PIPE X17 32X1 2 343464 56 3 145 PIPE VPR FRT 22527597 57 8 977 SCREW SEMS HEX W FL WA M6 3X1 81X20 12337828 58 3 900 RELAY PUMP I 10038490 59 3 163 PIPE INJ FUEL RTN L 25527136 60 8 977 SCREW PAN HD TORX TAP M4 2X1 41X13 11504646 61 3 163 PIPE INJ FUEL FEED L 25524637 A 62 8 950 CLIP CLSD CTD 560 CZ STEEL AR 3815761 63 3 162 CLIP INJ FUEL FEED RTN PIPE I 25522977 NOTE 1 SEE CHART IN GROUP FOR USAGE I t 1991 GENERAL MOTORS SERVICE PARTS OPERATIONS PONTIAC e22N 2 91 I as 3 000 GROUP
