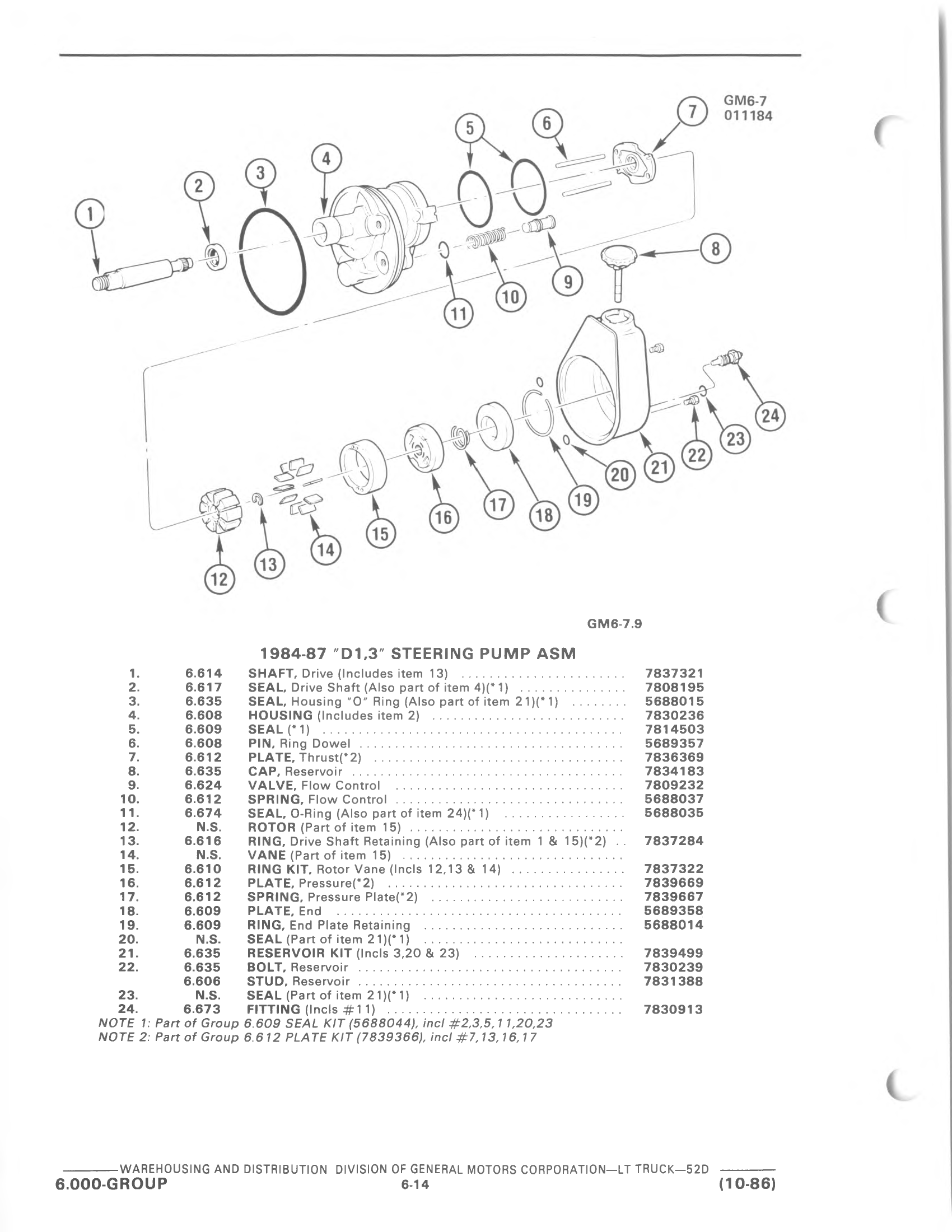

GMS 7 C Q 1 1 f q xx r I H em A Q Y O y 9 11 R TT m k I K I 6 I 7 1 6 I II I Q E I5 fr 7 0 8 eu I gg 9 M F1 p Q Cv GM6 1 9 1984 87 D1 3 STEERING PUMP ASM 1 6 614 SHAFT Drive Includes item 13 7837321 2 6 617 SEAL Drive Shaft Also part of item 4 1 7808195 3 6 635 SEAL Housing 0 Ring Also part of item 21 1 5688015 4 6 608 HOUSING Includes item 2 7830236 5 6 609 SEAL 1 7814503 6 6 608 PIN Ring Dowel 5689357 7 6 61 2 PLATE Thrust 2 7836369 8 6 635 CAP Reservoir 7834183 9 6 624 VALVE Flow Control 7809232 10 6 612 SPRING Flow Control 5688037 1 1 6 674 SEAL 0 Ring Also part of item 24 1 5688035 12 N S ROTOR Pan of item 15 13 6 616 RING Drive Shaft Retaining Also part of item 1 81 15 2 7837284 14 N S VANE Part of item 15 15 6 610 RING KIT Rotor Vane lncls 12 13 14 7837322 16 6 612 PLATE Pressure 2 7839669 17 6 612 SPRING Pressure Plate 2 7839667 18 6 609 PLATE Enu 5689358 19 6 609 RING End Plate Retaining 5688014 20 N S SEAL Part of item 21 1 21 6 635 REsEI Iv0II I KIT lncls 3 20 23 7839499 22 6 635 BOLT Reservoir 7830239 6 606 STUD Reservoir 7831388 23 N S SEAL Part of item 21 1 24 6 673 FITTING Ilncls 11 7830913 NOTE 1 Part of Group 6 609 SEAL KIT 5688044 incl 2 3 5 1 1 20 23 NOTE 2 Par of Group 6 612 PLATE KIT 7839366 incl 7 13 16 1 7 WAFlEHOU NG AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORAT ON LT TRLIcI 52D 6 000 GROUP 6 14 1 0 86
