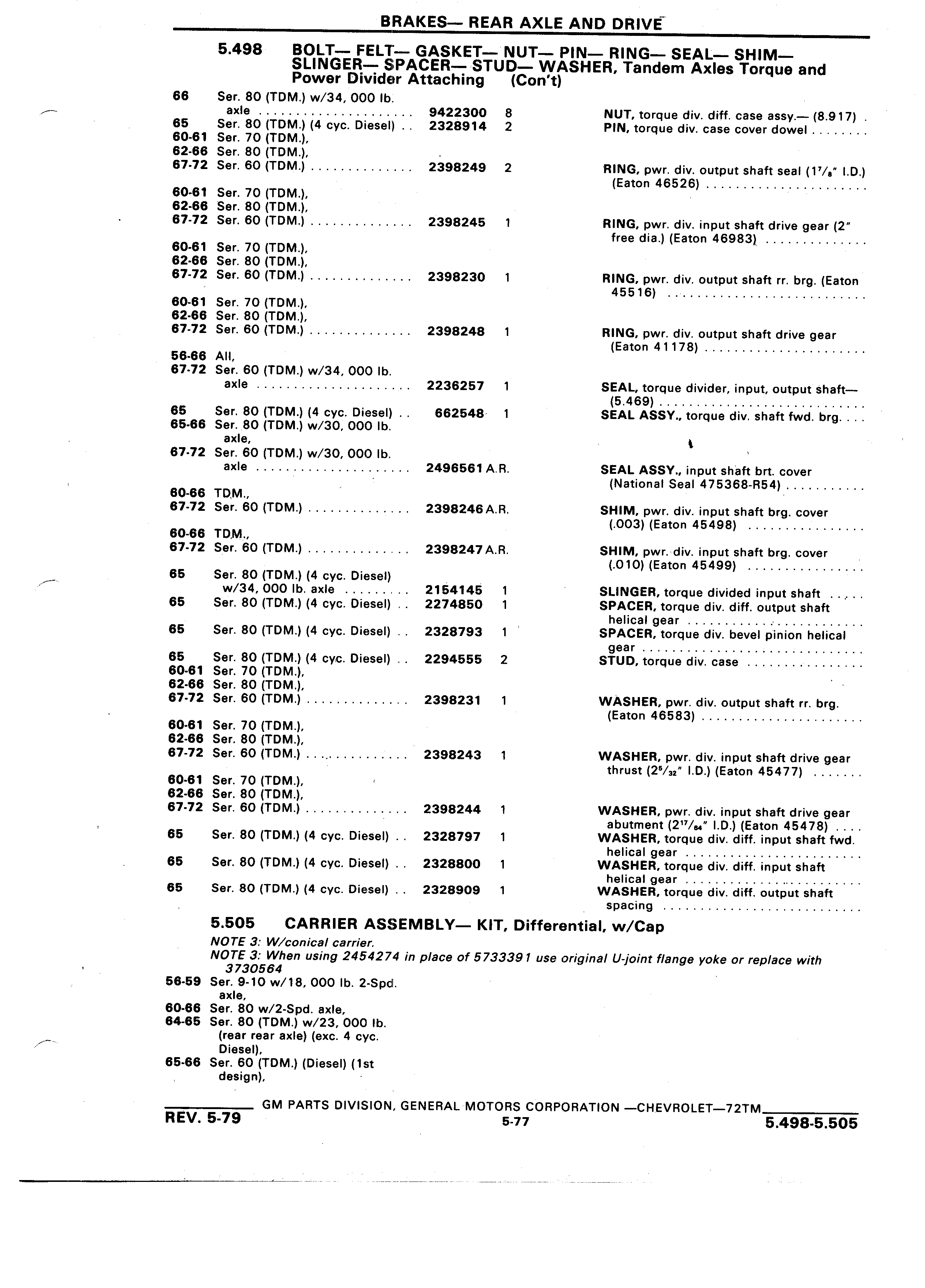

BRAKES REAR AXLE AND DRIVE 5 498 BOLT FELT GASKET NUT PIN RING SEAL SHIM SLINGER SLPACER STUD WASHER Tandem Axles Torque and Power Divider Attaching Con t 66 Ser 80 TDM w 34 000 lb axle 9422300 8 NUT torque div diff case assy 8 917 65 Ser 80 TDM 4 cyc Diesel 2328914 2 PIN torque div case cover dowel 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398249 2 RING pwr div output shaft seal 1 I D Eaton 46526 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398245 1 RING pwr div input shaft drive gear 2 free dia Eaton 46983 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398230 1 RING pwr div output shaft rr brg Eaton r 45516 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398248 1 RING pwr div output shaft drive gear Eaton 41178 56 66 All 67 72 Ser 60 TDM w 34 000 Ib axle 2236257 1 SEAL torque divider input output shaft 5 469 65 Ser 80 TDM 4 cyc Diesel 662548 1 SEAL ASSY torque div shaft fwd brg 65 66 Ser 80 TDM w 30 000 Ib axle 67 72 Ser 60 TDM w 30 000 Ib axle 2496561 A R SEAL ASSY input shaft brt cover National Seal 475368 R54 60 66 TDM 67 72 Ser 60 TDM 2398246 A R SHIM pwr div input shaft brg cover 003 Eaton 45498 60 66 TDM 67 72 Ser 60 TDM 2398247 A R SHIM pwr div input shaft brg cover 010 Eaton 45499 65 Ser 80 TDM 4 cyc Diesel V w 34 000 Ib axle 2154145 1 SLINGER torque divided input shaft 65 Ser 80 TDM 4 cyc Diesel 2274850 1 SPACER torque div diff output shaft hehcalgear 65 Ser 80 TDM 4 cyc Diesel 2328793 1 SPACER torque div bevel pinion helical gear 65 Ser 80 TDM 4 cyc Diesel 2294555 2 STUD torque div case 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398231 1 WASHER pwr div output shaft rr brg Eaton 46583 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398243 1 WASHER pwr div input shaft drive gear thrust 2 gz I D Eaton 45477 60 61 Ser 70 TDM 62 66 Ser 80 TDM 67 72 Ser 60 TDM 2398244 1 WASHER pwr div input shaft drive gear abutment 2 u I D Eaton 45478 V 65 Ser 80 TDM 4 cyc Diesel 2328797 1 WASHER torque div diff input shaft fwd helical gear 65 Ser 80 TDM 4 cyc Diesel 2328800 1 WASHER torque div diff input shaft hehcalgear 65 Ser 80 TDM 4 cyc Diesel 2328909 1 WASHER torque div diff output shaft I spacing 5 505 CARRIER ASSEMBLY KIT Differential w Cap NOTE 3 W c0nica carrier NOTE 3 When using 2454274 in place of 5733397 use original U joint flange yoke or replace with 3730564 56 59 Ser 9 10 w 18 000 Ib 2 Spdl axle 60 66 Ser 80 w 2 Spd axle 64 65 Ser 80 TDM w 23 000 lb rear rear axle exc 4 cyc Diesel 65 66 Ser 60 TDM Diesel 1st design Tli GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 72TM REV 5 79 5 77 5 498 5 505
