Truck Parts Catalog 31S June 1971
PrevPrevious Page - Truck Parts Catalog 31S June 1971Truck Parts Catalog 31S June 1971Next Page - Truck Parts Catalog 31S June 1971Next
3931601
3931601
3849307
3849307
3788655
3788655
3792398
3792398
3791266
3791266
3815215
3815215
3788401
3788401
3790888
3790888
3789821
3789821
3791022
3791022
3929219
3929219
1110388
1110388
3838444
3838444
3789160
3789160
3858403
3858403
3892632
3892632
3729000
3729000
3876169
3876169
3852870
3852870
3901764
3901764
3859941
3859941
3789162
3789162
3879688
3879688
3850666
3850666
3929217
3929217

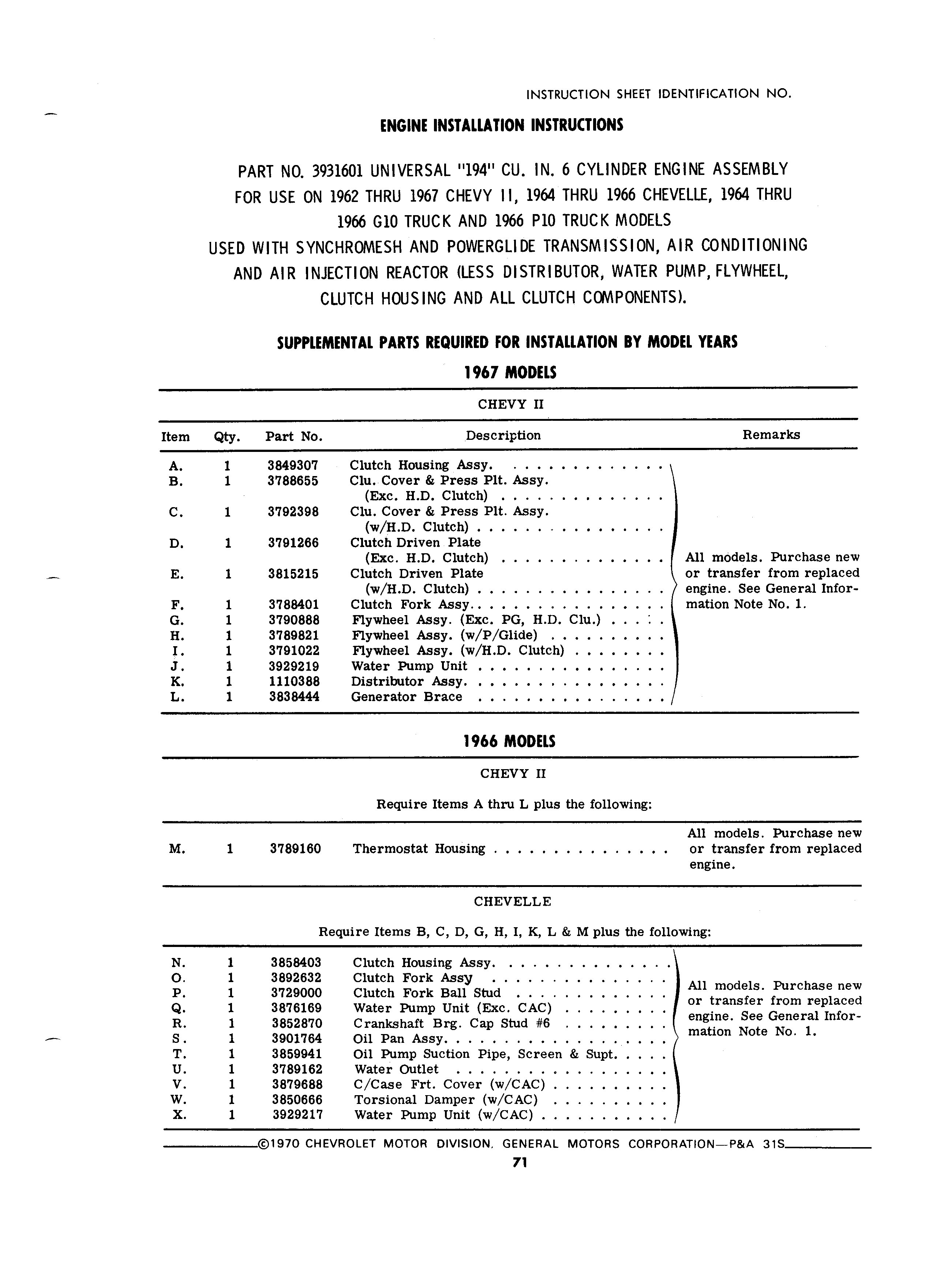

INSTRUCTION SHEET IDENTIFICATION NO A ENGINE INSTALLATION INSTRUCTIONS PART NO 3931601 UNIVERSAL l94 CU IN 6 CYLINDER ENGINE ASSEMBLY FOR USE ON 1962 THRU 1967 CHEVY II 1964 THRU 1966 CHEVELLE 1964 THRU 1966 G10 TRUCK AND 1966 P10 TRUCK MODELS USED WITH SYNCHROMESH AND POWERGLIDE TRANSMISSION AIR CONDITIONING AND AIR INJECTION REACTOR LESS DISTRIBUTOR WATER PUMP FLYWHEEL CLUTCH HOUSING AND ALL CLUTCH COMPONENTS SUPPLEMENTAL PARTS REQUIRED FOR INSTALLATION BY MODEL YEARS 1967 MODELS CHEVY II Item Qty Part No Description Remarks A 1 3849307 Clutch Housing Assy B 1 3788655 Clu Cover Press Plt Assy Exc H D Clutch C 1 3792398 Clu Cover Press Plt Assy w H D Clutch D 1 3791266 Clutch Driven Plate Exc H D Clutch All models Purchase new A E 1 3815215 Clutch Driven Plate or transfer from replaced w H D Clutch engine See General Infor F 1 3788401 Clutch Fork Assy mation Note No 1 G 1 3790888 Flywheel Assy Exc PG H D Clu 1 H 1 3789821 Flywheel Assy w P Glide I 1 3791022 Flywheel Assy w H D Clutch J 1 3929219 Water Pump Unit K 1 1110388 Distributor Assy L 1 3838444 Generator Brace 1966 MODELS CHEVY II Require Items A thru L plus the following p All models Purchase new M 1 3789160 Thermostat Housing or transfer from replaced engine CHEVELLE Require Items B C D G H I K L M plus the following N 1 3858403 Clutch Housing Assy O 1 3892632 Clutch Fork Assy 1 1 3729000 cmcn Fork Ba 11 stud AH tm d 1S I h S i mz o 1 3876169 water Pump Um Exc cAc 0 sS Gm rf ice R 1 3852870 cmnkshan mg Cap stud 6 N6 s 1 3901764 ou Pan Assy me T 1 3859941 Oil Pump Suction Pipe Screen Supt U 1 3789162 Water Outlet V 1 3879688 C Case Frt Cover w CAC W 1 3850666 Torsional Damper w CAC X 1 3929217 Water Pump Unit w CAC 1970 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 31S 7T
