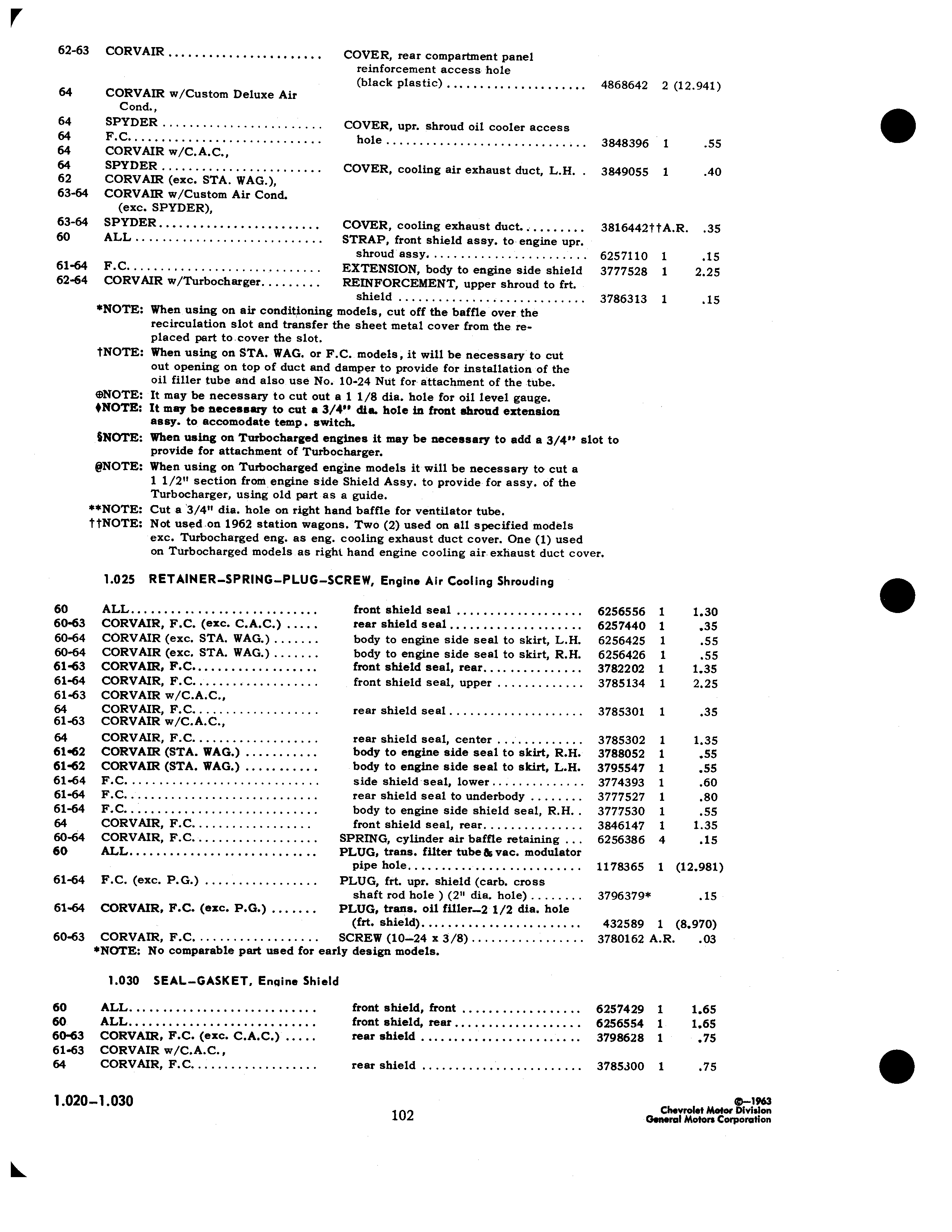

62 63 CORVAIR COVER rear compartment panel reinforcement access hole 64 CORVAIR w Custom Deluxe Air black plastic 4868642 2 12 941 Cond 64 SPYDER COVER upr shroud oil cooler access 64 F C hole 3848396 1 55 64 CORVAIR w C A C 64 SPYDER COVER cooling air exhaust duct L H 3849055 1 40 62 CORVAIR exc STA WAG 63 64 CORVAIR w Custom Air Cond exc SPYDER 63 64 SPYDER COVER cooling exhaust duct 3816442t tA R 35 60 ALL STRAP front shield assy to engine upr shroud assy 6257110 1 15 61 64 F C EXTENSION body to engine side shield 3777528 1 2 25 62 64 CORVAIR w Turbocharget REINFORCEMENT upper shroud to frt shield 3786313 1 15 NOTE When using on air conditioning models cut off the baffle over the recirculation slot and transfer the sheet metal cover from the replaced part to cover the slot tNOTE When using on STA WAG or F C models it will be necessary to cut out opening on top of duct and damper to provide for installation of the oil filler tube and also use No 10 24 Nut for attachment of the tube NOTE It may be necessary to cut out e 1 1 8 dia hole for oil level gauge NOTE It may be necessary to cut a 3 4 die hole in front shroud extension easy to accomodate temp switch MOTE When using on Turbocharged engines it may be necessary to add a 3 4 slot to provide for attachment of Turbocharger QNOTE When using on Turbocharged engine models it will be necessary to cut a 1 1 2 section from engine side Shield Assy to provide for assy of the Turbocharger using old part as a guide NOTE Cut a 3 4 dia hole on right hand baffle for ventilator tube fi1NOTE Not used on 1962 station wagons Two 2 used on all specified models exc Turbocharged eng as eng cooling exhaust duct cover One 1 used on Turbocharged models as right hand engine cooling air exhaust duct cover 1 025 RETAINER SPRING PLUG SCREW Engine Air Cooling Shrouding 60 ALL front shield seal 6256556 1 1 30 6Q 63 CORVAIR F C exc C A C rear shield seal 6257440 1 35 60 64 CORVAIR exc STA WAG body to engine side seal to skirt L H 6256425 1 55 60 64 CORVAIR exc STA WAG body to engine side seal to skirt R H 6256426 1 55 61 63 CORVAIR F C front shield seal rear 3782202 1 1 35 61 64 CORVAIR F C front shield seal upper 3785134 1 2 25 61 63 CORVAIR w C A C 64 CORVAIR F C rear shield seal 3785301 1 35 61 63 CORVAIR w C A C 64 CORVAIR F C rear shield seal center 3785302 1 1 35 61 62 CORVAIR STA WAG body to engine side seal to skirt R H 3788052 1 55 61 62 CORVAIR STA WAG body to engine side seal to skirt L H 3795547 1 55 61 64 F C side shield seal lower 3774393 1 60 61 64 F C rear shield seal to underbody 3777527 1 80 61 64 F C body to engine side shield seal R H 3777530 1 55 64 CORVAIR F C front shield seal rear 3846147 1 1 35 60 64 CORVAIR F C SPRING cylinder air baffle retaining 6256386 4 15 60 ALL PLUG trans filter tube as vac modulator pipe hole 1178365 1 12 981 61 64 F C exc P G PLUG frt upr shield carb cross shaft rod hole 2 dis hole 3796379 15 61 64 CORVAIR F C exc P G PLUG trans oil filler 2 1 2 dia hole frt shield 432589 1 8 970 60 63 CORVAIR F C SCREW 10 24 x 3 8 3780162 A R 03 NOTE No comparable pert used for early design models 1 030 SEAL GASKET Enqine Shield 60 ALL front shield front 6257429 1 1 65 60 ALL front shield rear 6256554 1 1 65 60 63 CORVAIR F C exc C A C rear shield 3798628 1 75 61 63 CORVAIR w C A C 64 CORVAIR F C rearshield 3785300 1 75 1 020 1 030 0 1963 102 Chevrolet Meter Division General Motors Corporation
