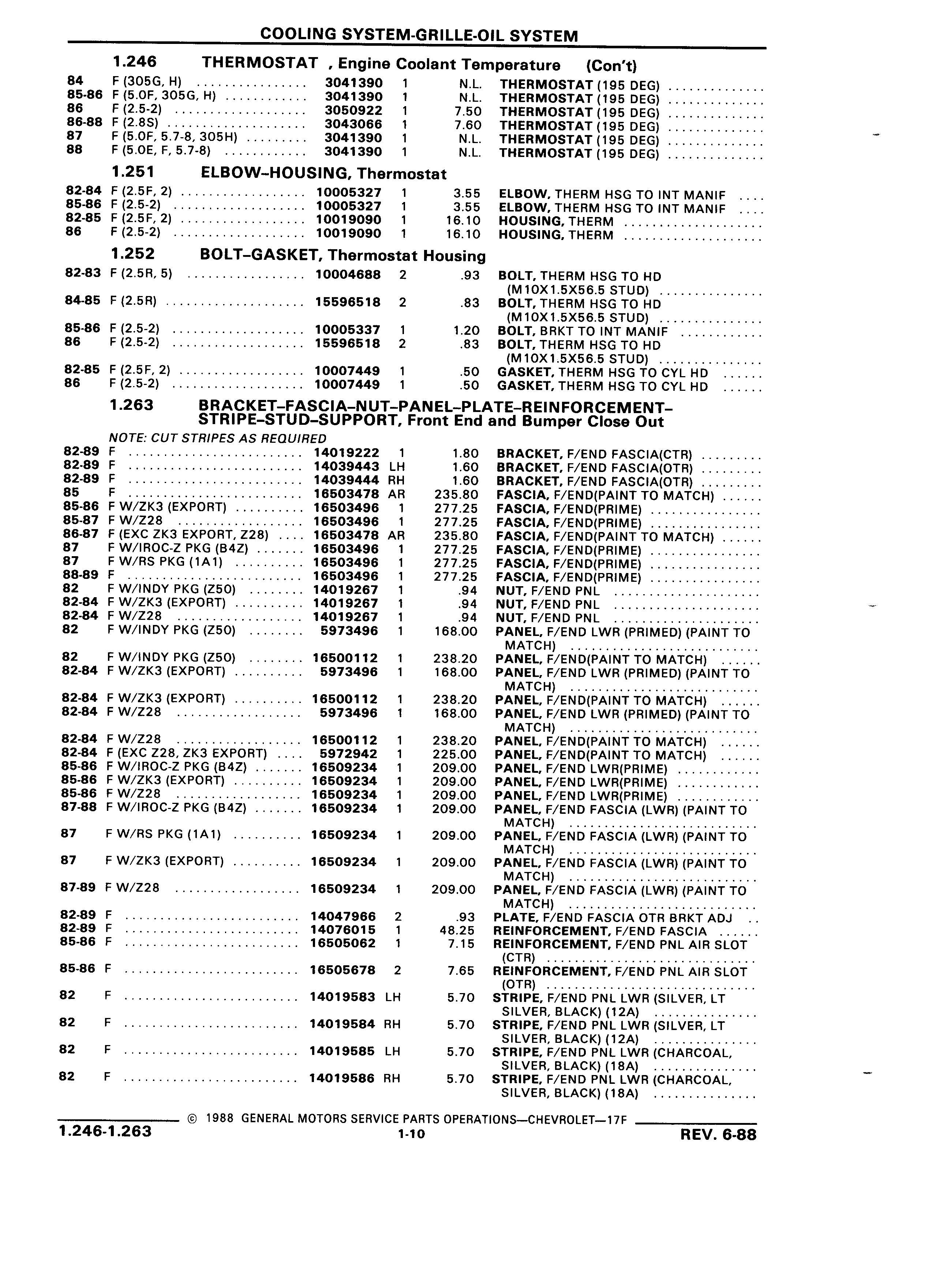

COOLING SYSTEM GRILLE OIL SYSTEM 1 246 THERMOSTAT Engine Coolant Temperature Con t 84 F 305G H 3041390 1 N L THERMOSTAT 195 DEG 85 86 F 5 0F 305G H 3041390 1 N L THERMOSTAT 195 DEG 86 F 2 5 2 3050922 1 7 50 THERMOSTAT 195 DEG 86 88 F 2 88 3043066 1 7 60 THERMOSTAT 195 DEG 87 F 5 0F 5 7 8 305H 3041390 1 N L THERMOSTAT 195 DEG 88 F 5 0E F 5 7 8 3041390 1 N L THERMOSTAT 195 DEG 1 251 ELBOW HOUSING Thermostat 82 84 F 2 5F 2 10005327 1 3 55 ELBOW THERM HSG T0 INT MANIF 85 86 F 2 5 2 10005327 1 3 55 ELBOW THERM HSG TO INT MANIF 82 85 F 2 5F 2 10019090 1 16 10 HOUSING THERM 86 F 2 5 2 10019090 1 16 10 HOUSING THERM 1 252 BOLT GASKET Thermostat Housing 82 83 F 2 5R 5 10004688 2 93 BOLT THERM HSG TO HD M 10X1 5X56 5 STUD 84 85 F 2 5R 15596518 2 83 BOLT THERM HSG TO HD M10X1 5X56 5 STUD 85 86 F 2 5 2 10005337 1 1 20 BOLT BRKT TO INT MANIF 86 F 2 5 2 15596518 2 83 BOLT THERM HSG TO HD M10X1 5X56 5 STUD 82 85 F 2 5F 2 10007449 1 50 GASKET THERM HSG TO CYL HD 86 F 2 5 2 10007449 1 50 GASKET THERM HSG TO CYL HD 1 263 BRACKET FASC A NUT PANEL PLATE RE NFORCEMENT STRIPE STUD SUPPORT Front End and Bumper Close Out NOTE CUT STRIPES AS REQUIRED 82 89 F 14019222 1 1 80 BRACKET F END FASC A CTR 82 89 F 14039443 LH 1 60 BRACKET F END FASCIA OTR 82 89 F 14039444 RH 1 60 BRACKET F END FASCIA OTR 85 F 16503478 AR 235 80 FASCIA F END PA NT TO MATCH 85 86 F W ZK3 EXPORT 16503496 1 277 25 FASCIA F END PRIME 85 87 F W Z28 16503496 1 277 25 FASCIA F END PRIME 86 87 F EXC ZK3 EXPORT Z28 16503478 AR 235 80 FASCIA F END PA NT TO MATCH 87 F W IROC Z PKG B4Z 16503496 1 277 25 FASCIA F END PRIME 87 F W RS PKG 1A1 16503496 1 277 25 FASCIA F END PRIME 88 89 F 16503496 1 277 25 FASCIA F END PRIME 82 F W INDY PKG Z50 14019267 1 94 NUT F END PNL 82 84 F W ZK3 EXPORT 14019267 1 94 NUT F END PNL 82 84 F W Z28 14019267 1 94 NUT F END PNL 82 F W INDY PKG Z50 5973496 1 168 00 PANEL F END LWR PRIMED PAINT TO MATCH 82 F W INDY PKG Z50 165001 12 1 238 20 PANEL F END PA NT TO MATCH 82 84 F W ZK3 EXPORT 5973496 1 168 00 PANEL F END LWR PRIMED PAINT TO MATCH 82 84 F W ZK3 EXPORT 16500112 1 238 20 PANEL F END PA NT TO MATCH 82 84 F W Z28 5973496 1 168 00 PANEL F END LWR PRIMED PAINT TO MATCH 82 84 F W Z28 16500112 1 238 20 PANEL F END PA NT TO MATCH 82 84 F EXC Z28 ZK3 EXPORT 5972942 1 225 00 PANEL F END PA NT TO MATCH 85 86 F W IROC Z PKG B4Z 16509234 1 209 00 PANEL F END LWR PRIME 85 86 F W ZK3 EXPORT 16509234 1 209 00 PANEL F END LWR PRIME 85 86 F W Z28 16509234 1 209 00 PANEL F END LWR PRIME 87 88 F W ROC Z PKG B4Z 16509234 1 209 00 PANEL F END FASCIA LWR PAINT TO MATCH B7 F W RS PKG 1A1 16509234 1 209 00 PANEL F END FASCIA LWR PAINT TO MATCH 87 F W ZK3 EXPORT 16509234 1 209 00 PANEL F END FASCIA LWR PAINT T0 MATCH 87 89 F W Z28 16509234 1 209 00 PANEL F END FASCIA LWR PAINT TO MATCH 82 89 F 14047966 2 93 PLATE F END FASCIA OTR BRKT ADJ 82 89 F 14076015 1 48 25 REINFORCEMENT F END FASCIA 85 86 F 16505062 1 7 15 REINFORCEMENT F END PNL AIR SLOT CTR 85 86 F 16505678 2 7 65 REINFORCEMENT F END PNL AIR SLOT OTR 82 F 14019583 LH 5 70 STRIPE F END PNL LWR SILVER LT SILVER BLACK 12A 82 F 14019584 RH 5 70 STRIPE F END PNL LWR SILVER LT SILVER BLACK 12A 82 F 14019585 LH 5 70 STRIPE F END PNL LWR CHARCOAL SILVER BLACK 18A 82 F 14019586 RH 5 70 STRIPE F END PNL LWR CHARCOAL SILVER BLACK 18A 1988 GENERAL MOTORS SERVICE PARTS OPERAT 0NS CHEVROLET 17F T 1 246 1 263 1 10 REV 6 88
