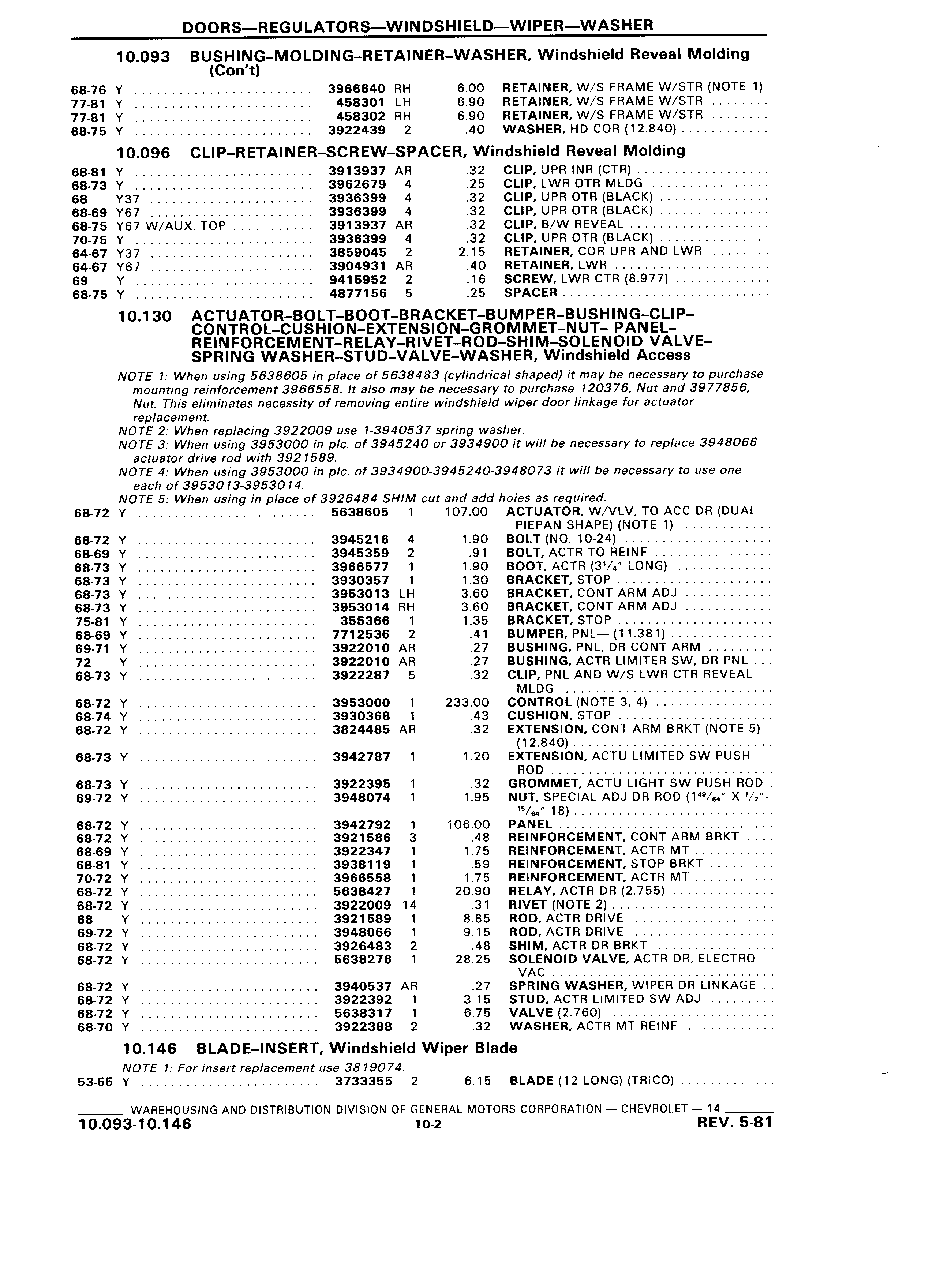

DOORS REGULATORS WINDSHIELD WIPER WASHER 10 093 BU S HING MOLDING RETAINER WASHER Windshield Reveal Molding 0n t 68 76 Y 3966640 RH 6 00 RETAINER W S FRAME W STR NOTE 1 77 81 Y 458301 LH 6 90 RETAINER W S FRAME W STR 77 81 Y 458302 RH 6 90 RETAINER W S FRAME W STR 68 75 Y 3922439 2 40 WASHER HD COR 12 840 10 096 CLIP RETAINER SCREW SPACER Windshield Reveal Molding 68 81 Y 3913937 AR 32 CLIP UPR INR CTR 68 73 Y 3962679 4 25 CLIP LWR OTR MLDG 68 Y37 3936399 4 32 CLIP UPR OTR BLACK 68 69 Y67 3936399 4 32 CLIP UPR OTR BLACK 68 75 Y67 W AUX TOP 3913937 AR 32 CLIP B W REVEAL 70 75 Y 3936399 4 32 CLIP UPR OTR BLACK 64 67 Y37 3859045 2 2 15 RETAINER COR UPR AND LWR 64 67 Y67 3904931 AR 40 RETAINER LWR 69 Y 9415952 2 16 SCREW LWR CTR 8 977 68 75 Y 4877156 5 25 SPACER 10 130 ACTUATOR BOLT BOOT BRACKET BUMPER BUSHlNG CLIP CONTROL CUSHION EXTENSION GROMMET NUT PANEL REINFORCEMENT RELAY RIVET ROD SHIM SOLENOID VALVE SPRING WASHER STUD VALVE WASHER Windshield Access NOTE 1 When using 5638605 in place of 5638483 cylindrical shaped it may be necessary to purchase mounting reinforcement 3966558 lt also may be necessary to purchase 720376 Nut and 3977856 Nut This eliminates necessity of removing entire windshield wiper door linkage for actuator replacement NOTE 2 When replacing 3922009 use 1 3940537 spring washer NOTE 3 When using 3953000 in plc of 3945240 or 3934900 it will be necessary to rep ace 3948066 actuator drive rod with 3921589 NOTE 4 When using 3953000 in plc of 3934900 3945240 3948073 it will be necessary to use one each of 3953013 3953014 NOTE 5 When using in place of 3926484 SH M cut and add ho es as required 68 72 Y 5638605 1 107 00 ACTUATOR W VLV TO ACC DR DUAL PIEPAN SHAPE NOTE 1 68 72 Y 3945216 4 1 90 BOLT NO 10 24 68 69 Y 3945359 2 91 BOLT ACTR TO REINF 68 73 Y 3966577 1 1 90 BOOT ACTR 3 4 LONG 68 73 Y 3930357 1 1 30 BRACKET STOP 68 73 Y 3953013 LH 3 60 BRACKET CONT ARM ADJ 68 73 Y 3953014 RH 3 60 BRACKET CONT ARM ADJ 75 81 Y 355366 1 1 35 BRACKET STOP 68 69 Y 7712536 2 41 BUMPER PNL 1 1 381 69 71 Y 3922010 AR 27 BUSHING PNL DR CONT ARM 72 Y 3922010 AR 27 BUSHING ACTR LIMITER SW DR PNL 68 73 Y 3922287 5 32 CLIP PNL AND W S LWR CTR REVEAL MLDG 68 72 Y 3953000 1 233 00 CONTROL NOTE 3 4 68 74 Y 3930368 1 43 CUSHION STOP 68 72 Y 3824485 AR 32 EXTENSION CONT ARM BRKT NOTE 5 12 840 68 73 Y 3942787 1 1 20 EXTENSION ACTU LIMITED SW PUSH ROD 68 73 Y 3922395 1 32 GROMMET ACTU LIGHT SW PUSH ROD 69 72 Y 3948074 1 1 95 NUT SPECIAL ADJ DR ROD 1 9 M X z 5 6 18 68 72 Y 3942792 1 106 00 PANEL 68 72 Y 3921586 3 48 REINFORCEMENT CONT ARM BRKT 68 69 Y 3922347 1 1 75 REINFORCEMENT ACTR MT 68 81 Y 3938119 1 59 REINFORCEMENT STOP BRKT 70 72 Y 3966558 1 1 75 REINFORCEMENT ACTR MT 68 72 Y 5638427 1 20 90 RELAY ACTR DR 2 755 68 72 Y 3922009 14 31 RIVET NOTE 2 68 Y 3921589 1 8 85 ROD ACTR DRIVE 69 72 Y 3948066 1 9 15 ROD ACTR DRIVE 68 72 Y 3926483 2 48 SHIM ACTR DR BRKT 68 72 Y 5638276 1 28 25 SOLENOID VALVE ACTR DR ELECTRO VAC 68 72 Y 3940537 AR 27 SPRING WASHER WIPER DR LINKAGE 68 72 Y 3922392 1 3 15 STUD ACTR LIMITED SW ADJ 68 72 Y 5638317 1 6 75 VALVE 2 760 68 70 Y 3922388 2 32 WASHER ACTR MT REINF 10 146 BLADE INSERT Windshield Wiper Blade NOTE 1 For insert replacement use 3819074 53 55 Y 3733355 2 6 15 BLADE 12 LONG TRICO WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14 10 093 10 146 10 2 REV 5 81
