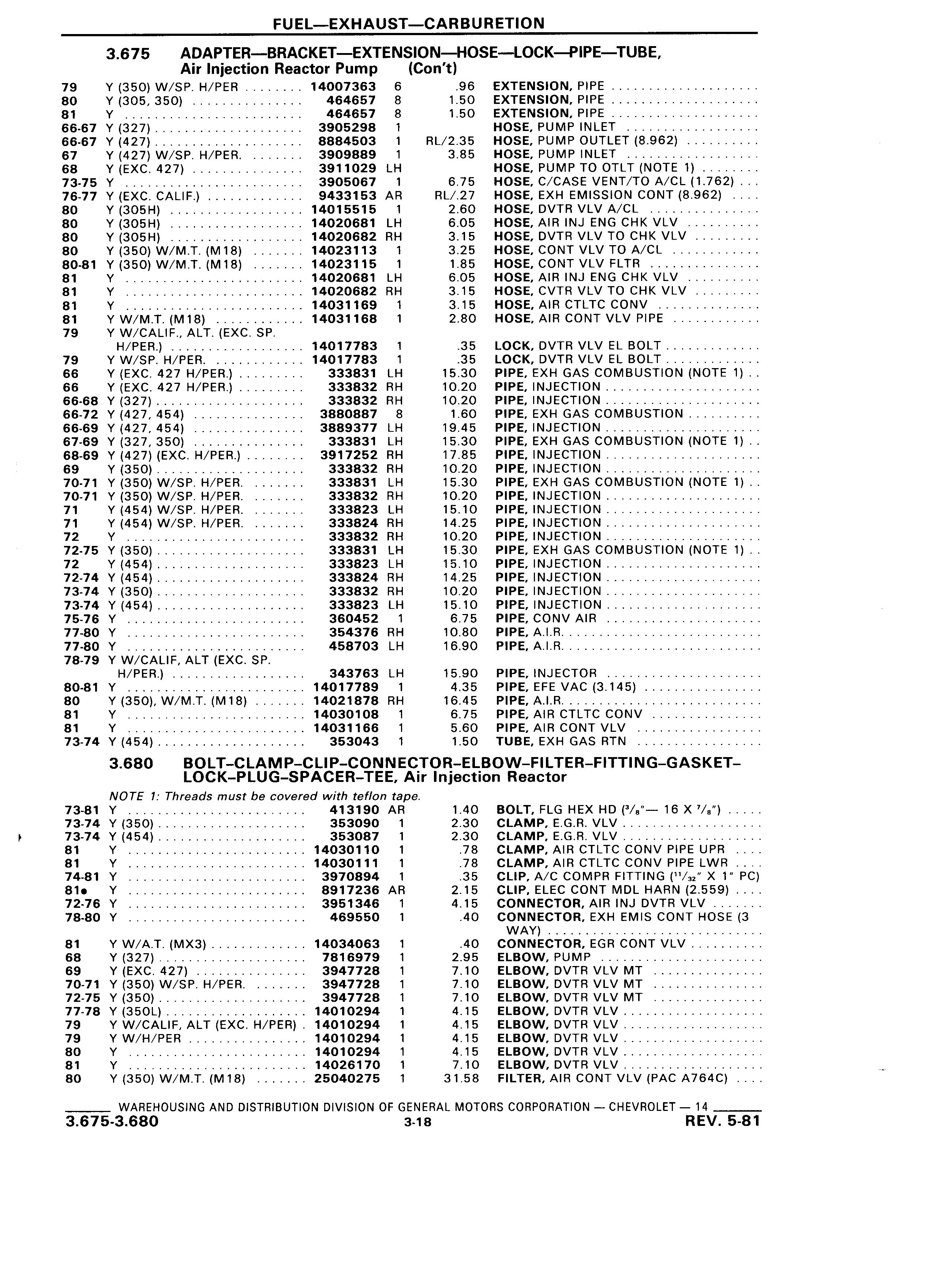

FUEL EXHAUST CARBURETION 3 675 ADAPTER BRACKET EXTENSION HOSE LOCK PIPE TUBE Air Injection Reactor Pump C0n t 79 Y 350 W SP H PER 14007363 6 96 EXTENSION PIPE 80 Y 305 350 464657 8 1 50 EXTENSION PIPE 81 Y 464657 8 1 50 EXTENSION PIPE 66 67 Y 327 3905298 1 HOSE PUMP INLET 66 67 Y 427 8884503 1 RL 2 35 HOSE PUMP OUTLET 8 962 67 Y 427 W SP H PER 3909889 1 3 85 HOSE PUMP INLET 68 Y EXC 427 3911029 LH HOSE PUMP TO OTLT NOTE 1 73 75 Y 3905067 1 6 75 HOSE C CASE VENT TO A CL 1 762 76 77 Y EXC CALIF 9433153 AR RL 27 HOSE EXH EMISSION CONT 8 962 80 Y 305H 14015515 1 2 60 HOSE DVTR VLV A CL 80 Y 305H 14020681 LH 6 05 HOSE AIR INJ ENG CHK VLV 80 Y 305H 14020682 RH 3 15 HOSE DVTR VLV TO CHK VLV 80 Y 350 W M T M18 14023113 1 3 25 HOSE CONT VLV TO A CL 80 81 Y 350 W M T M18 14023115 1 1 85 HOSE CONT VLV FLTR 81 Y 14020681 LH 6 05 HOSE AIR INJ ENG CHK VLV 81 Y 14020682 RH 3 15 HOSE CVTR VLV TO CHK VLV 81 Y 14031169 1 3 15 HOSE AIR CTLTC CONV 81 Y W M T M18 14031168 1 2 80 HOSE AIR CONT VLV PIPE 79 Y W CALIF ALT EXC SP H PER 14017783 1 35 LOCK DVTR VLV EL BOLT 79 Y W SP H PER 14017783 1 35 LOCK DVTR VLV EL BOLT 66 Y EXC 427 H PER 333831 LH 15 30 PIPE EXH GAS COMBUSTION NOTE 1 66 Y EXC 427 H PER 333832 RH 10 20 PIPE INJECTION 66 68 Y 327 333832 RH 10 20 PIPE INJECTION 66 72 Y 427 454 3880887 8 1 60 PIPE EXH GAS COMBUSTION 66 69 Y 427 454 3889377 LH 19 45 PIPE INJECTION 67 69 Y 327 350 333831 LH 15 30 PIPE EXH GAS COMBUSTION NOTE 1 68 69 Y 427 EXC H PER 3917252 RH 17 85 PIPE INJECTION 69 Y 350 333832 RH 10 20 PIPE INJECTION 70 71 Y 350 W SP H PER 333831 LH 15 30 PIPE EXH GAS COMBUSTION NOTE 1 70 71 Y 350 W SP H PER 333832 RH 10 20 PIPE INJECTION 71 Y 454 W SP H PER 333823 LH 15 10 PIPE INJECTION 71 Y 454 W SP H PER 333824 RH 14 25 PIPE INJECTION 72 Y 333832 RH 10 20 PIPE INJECTION 72 75 Y 350 333831 LH 15 30 PIPE EXH GAS COMBUSTION NOTE 1 72 Y 454 333823 LH 15 10 PIPE INJECTION 72 74 Y 454 333824 RH 14 25 PIPE INJECTION 73 74 Y 350 333832 RH 10 20 PIPE INJECTION 73 74 Y 454 333823 LH 15 10 PIPE INJECTION 75 76 Y 360452 1 6 75 PIPE CONV AIR 77 80 Y 354376 RH 10 80 PIPE A I R 77 80 Y 458703 LH 16 90 PIPE A I R 78 79 Y W CALIF ALT EXC SP H PER 343763 LH 15 90 PIPE INJECTOR 80 81 Y 14017789 1 4 35 PIPE EFE VAC 3 145 80 Y 350 W M T M18 14021878 RH 16 45 PIPE A I R 81 Y 14030108 1 6 75 PIPE AIR CTLTC CONV 81 Y 14031166 1 5 60 PIPE AIR CONT VLV 73 74 Y 454 353043 1 1 50 TUBE EXH GAS RTN 3 680 BOLT CLAMP CL P CONNECTOR ELBOW FILTER FITTING GASKET LOCK PLUG SPACER TEE Air Injection Reactor NOTE 1 Threads must be covered with teflon tape 73 81 Y 413190 AR 1 40 BOLT FLG HEX HD B 16 X E 73 74 Y 350 353090 1 2 30 CLAMP E G R VLV r 73 74 Y 454 353087 1 2 30 CLAMP E G R VLV 81 Y 14030110 1 78 CLAMP AIR CTLTC CONV PIPE UPR 81 Y 14030111 1 78 CLAMP AIR CTLTC CONV PIPE LWR 74 81 Y 3970894 1 35 CLIP A C COMPR FITTING az X 1 PC 81 Y 8917236 AR 2 15 CLIP ELEC CONT MDL HARN 2 559 72 76 Y 3951346 1 4 15 CONNECTOR AIR INJ DVTR VLV 78 80 Y 469550 1 40 CONNECTOR EXH EMIS CONT HOSE 3 WAY 81 Y W A T MX3 14034063 1 40 CONNECTOR EGR CONT VLV 68 Y 327 7816979 1 2 95 ELBOW PUMP 69 Y EXC 427 3947728 1 7 10 ELBOW DVTR VLV MT 70 71 Y 350 W SP H PER 3947728 1 7 10 ELBOW DVTR VLV MT 72 75 Y 350 3947728 1 7 10 ELBOW DVTR VLV MT 77 78 Y 350L 14010294 1 4 15 ELBOW DVTR VLV 79 Y W CALIF ALT EXC H PER 14010294 1 4 15 ELBOW DVTR VLV 79 Y W H PER 14010294 1 4 15 ELBOW DVTR VLV 80 Y 14010294 1 4 15 ELBOW DVTR VLV 81 Y 14026170 1 7 10 ELBOW DVTR VLV 80 Y 350 W M T M18 25040275 1 31 58 FILTER AIR CONT VLV PAC A764C WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14 3 675 3 680 3 18 REV 5 81
