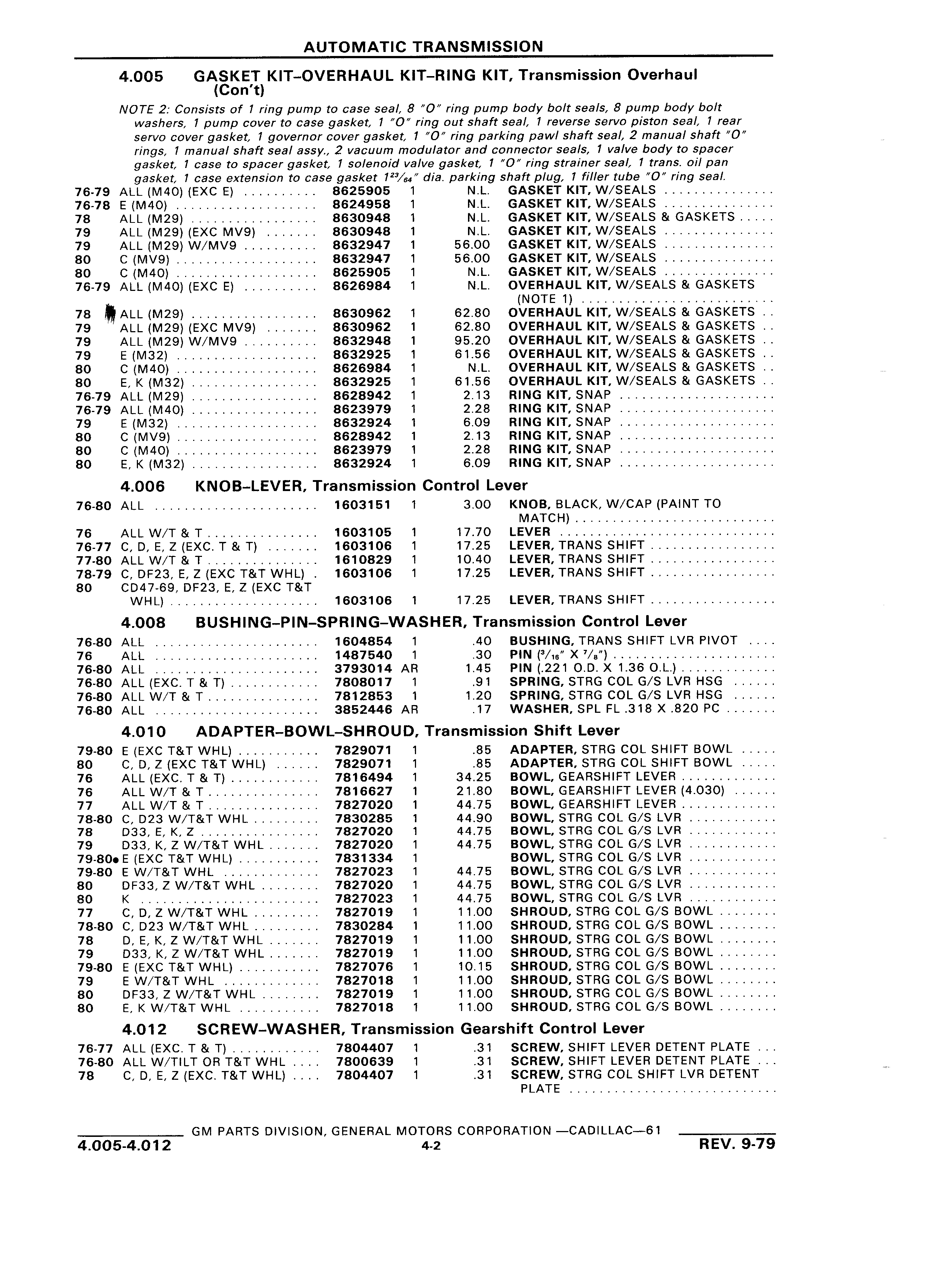

AUTOMATIC TRANSMISSION 4 005 GASKET KIT OVERHAUL KIT RING KIT Transmission Overhaul Con t NOTE 2 Consists of 7 ring pump to case seal 8 O ring pump body bolt seals 8 pump body bolt washers 7 pump cover to case gasket 7 O ring out shaft seal 1 reverse servo piston seal 7 rear servo cover gasket 7 governor cover gasket 7 O ring parking pawl shaft seal 2 manual shaft O rings 7 manual shaft seal assy 2 vacuum modulator and connector seals 7 valve body to spacer gasket 7 case to spacer gasket 7 solenoid valve gasket 7 O ring strainer seal 7 trans oil pan gasket 7 case extension to case gasket 7 A dia parking shaft plug 7 filler tube O ring seal 76 79 ALL M40 EXC E 8625905 1 N L GASKET KIT W SEALS 76 78 E M40 8624958 1 N L GASKET KIT W SEALS 78 ALL M29 8630948 1 N L GASKET KIT W SEALS GASKETS 79 ALL M29 EXC MV9 8630948 1 N L GASKET KIT W SEALS 79 ALL M29 W MV9 8632947 1 56 00 GASKET KIT W SEALS 80 C MV9 8632947 1 56 00 GASKET KIT W SEALS 80 C M40 8625905 1 N L GASKET KIT W SEALS 76 79 ALL M40 EXC E 8626984 1 N L OVERHAUL KIT W SEALS GASKETS NOTE 1 78 ALL M29 8630962 1 62 80 OVERHAUL KIT W SEALS GASKETS 79 ALL M29 EXC MV9 8630962 1 62 80 OVERHAUL KIT W SEALS GASKETS 79 ALL M29 W MV9 8632948 1 95 20 OVERHAUL KIT W SEALS GASKETS 79 E M32 8632925 1 61 56 OVERHAUL KIT W SEALS GASKETS 80 C M40 8626984 1 N L OVERHAUL KIT W SEALS GASKETS 80 E K M32 8632925 1 61 56 OVERHAUL KIT W SEALS GASKETS 76 79 AL L M29 8628942 1 2 13 RING KIT SNAP 76 79 ALL M40 8623979 1 2 28 RING KIT SNAP 79 E M32 8632924 1 6 09 RING KIT SNAP 80 C MV9 8628942 1 2 13 RING KIT SNAP 80 C M40 8623979 1 2 28 RING KIT SNAP 80 E K M32 8632924 1 6 09 RING KIT SNAP 4 006 KNOB LEVER Transmission Control Lever 76 80 ALL 1603151 1 3 00 KNOB BLACK W CAP PAINT TO MATCH 76 ALL W T T 1603105 1 17 70 LEVER 76 77 C D E Z EXC T T 1603106 1 17 25 LEVER TRANS SHIFT 77 80 ALL W T T 1610829 1 10 40 LEVER TRANS SHIFT 78 79 C DF23 E Z EXC T T WHL 1603106 1 17 25 LEVER TRANS SHIFT 80 CD47 69 DF23 E Z EXC T T WHL 1603106 1 17 25 LEVER TRANS SHIFT 4 008 BUSHING PIN SPRING WASHER Transmission Control Lever 76 80 ALL 1604854 1 40 BUSHING TRANS SHIFT LVR PIVOT 76 ALL 1487540 1 30 PIN la X B 76 80 ALL 3793014 AR 1 45 PIN 221 O D X 1 36 O L 76 80 ALL EXC T T 7808017 1 91 SPRING STRG COL G S LVR HSG 76 80 ALL W T T 7812853 1 1 20 SPRING STRG COL G S LVR HSG 76 80 ALL 3852446 AR 17 WASHER SPL FL 318 X 820 PC 4 010 ADAPTER BOWL SHROUD Transmission Shift Lever 79 80 E EXC T T WHL 7829071 1 85 ADAPTER STRG COL SHIFT BOWL 80 C D Z EXC T T WHL 7829071 1 85 ADAPTER STRG COL SHIFT BOWL 76 ALL EXC T T 7816494 1 34 25 BOWL GEARSHIFT LEVER 76 ALL W T T 7816627 1 21 80 BOWL GEARSHIFT LEVER 4 030 77 ALL W T T 7827020 1 44 75 BOWL GEARSHIFT LEVER 78 80 C D23 W T T WHL 7830285 1 44 90 BOWL STRG COL G S LVR 78 D33 E K Z 7827020 1 44 75 BOWL STRG COL G S LVR 79 D33 K Z W T T WHL 7827020 1 44 75 BOWL STRG COL G S LVR 79 80 E EXC T T WHL 7831334 1 BOWL STRG COL G S LVR 79 80 E W T T WHL 7827023 1 44 75 BOWL STRG COL G S LVR 80 DF33 Z W T T WHL 7827020 1 44 75 BOWL STRG COL G S LVR 80 K 7827023 1 44 75 BOWL STRG COL G S LVR 77 C D Z W T T WHL 7827019 1 11 00 SHROUD STRG COL G S BOWL 78 80 C D23 W T T WHL 7830284 1 11 00 SHROUD STRG COL G S BOWL 78 D E K Z W T T WHL 7827019 1 11 00 SHROUD STRG COL G S BOWL 79 D33 K Z W T T WHL 7827019 1 11 00 SHROUD STRG COL G S BOWL 79 80 E EXC T T WHL 7827076 1 10 15 SHROUD STRG COL G S BOWL 79 E W T T WHL 7827018 1 11 00 SHROUD STRG COL G S BOWL 80 DF33 Z W T T WHL 7827019 1 11 00 SHROUD STRG COL G S BOWL 80 E K W T T WHL 7827018 1 11 00 SHROUD STRG COL G S BOWL 4 012 SCREW WASHER Transmission Gearshift Control Lever 76 77 ALL EXC T T 7804407 1 31 SCREW SHIFT LEVER DETENT PLATE 76 80 ALL W TILT OR T T WHL 7800639 1 31 SCREW SHIFT LEVER DETENT PLATE 78 C D E Z EXC T T WHL 7804407 1 31 SCREW STRG COL SHIFT LVR DETENT PLATE GM PARTS DIVISION GENERAL MOTORS CORPORATION CAD LLAC 61 4 005 4 01 2 4 2 REV 9 79
