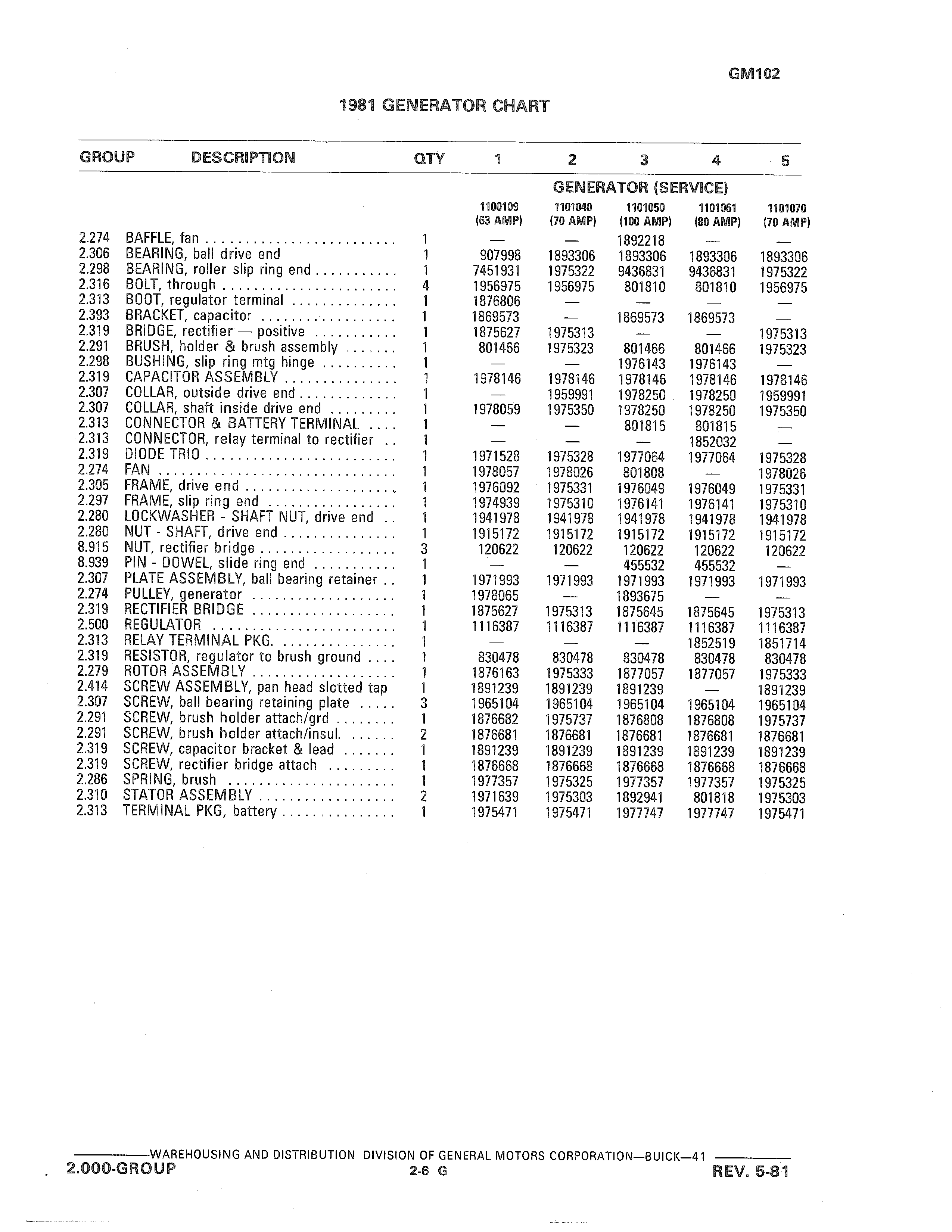

GM102 198 I GENERATOR CHART GROUP DESCRIPTION 0 TY 1 2 3 4 5 GENERATOR SERVICE 1100109 1101040 1101050 1101061 1101070 63 AMP 70 AMP 100 AMP 80 AMP 70 AMP 2 274 BAFFLE fan 1 1892218 2 306 BEARING ball drive end 1 907998 1893306 1893306 1893306 1893306 2 298 BEARING roller slip ring end 1 7451931 1975322 9436831 9436831 1975322 2 316 BOLT through 4 1956975 1956975 801810 801810 1956975 2 313 BOOT regulator terminal 1 1876806 2 393 BRACKET capacitor 1 1869573 1869573 1869573 2 319 BRIDGE rectifier positive 1 1875627 1975313 1975313 2 291 BRUSH holder 8i brush assembly 1 801466 1975323 801466 801466 1975323 2 298 BUSHING slip ring mtg hinge 1 1976143 1976143 2 319 CAPACITOR ASSEMBLY 1 1978146 1978146 1978146 1978146 1978146 2 307 COLLAR outside drive end 1 1959991 1978250 1978250 1959991 2 307 COLLAR shaft inside drive end 1 1978059 1975350 1978250 1978250 1975350 2 313 CONNECTOR BATTERY TERMINAL 1 801815 801815 12 313 CONNECTOR relay terminal to rectifier 1 1852032 2 319 DIODE TRIO 1 1971528 1975328 1977064 1977064 1975328 2 274 FAN 1 1978057 1978026 801808 1978026 2 305 FRAME drive end 1 1976092 1975331 1976049 1976049 1975331 2 297 FRAME slip ring end 1 1974939 1975310 1976141 1976141 1975310 2 280 LOCKWASHER SHAFT NUT drive end 1 1941978 1941978 1941978 1941978 1941978 2 280 NUT SHAFT drive end 1 1915172 1915172 1915172 1915172 1915172 8 915 NUT rectifier bridge 3 120622 120622 120622 120622 120622 8 939 PIN DOWEL slide ring end 1 455532 455532 2 307 PLATE ASSEMBLY ball bearing retainer 1 1971993 1971993 1971993 1971993 1971993 2 274 PULLEY generator 1 1978065 1893675 2 319 RECTIFIER BRIDGE 1 1875627 1975313 1875645 1875645 1975313 2 500 REGULATOR 1 1116387 1116387 1116387 1116387 1116387 2 313 RELAY TERMINAL PKG 1 1852519 1851714 2 319 RESISTOR regulator to brush ground 1 830478 830478 830478 830478 830478 2 279 ROTOR ASSEMBLY 1 1876163 1975333 1877057 1877057 1975333 2 414 SCREW ASSEMBLY pan head slotted tap 1 1891239 1891239 1891239 1891239 2 307 SCREW ball bearing retaining plate 3 1965104 1965104 1965104 1965104 1965104 2 291 SCREW brush holder attach grd 1 1876682 1975737 1876808 1876808 1975737 2 291 SCREW brush holder attach insul 2 1876681 1876681 1876681 1876681 1876681 2 319 SCREW capacitor bracket lead 1 1891239 1891239 1891239 1891239 1891239 2 319 SCREW rectifier bridge attach 1 1876668 1876668 1876668 1876668 1876668 2 286 SPRING brush 1 1977357 1975325 1977357 1977357 1975325 2 310 STATOR ASSEMBLY 2 1971639 1975303 1892941 801818 1975303 2 313 TERMINAL PKG battery 1 1975471 1975471 1977747 1977747 1975471 iWAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORAT ON BU CK 41 2 000 GROUP 2 6 G REV 5 81
