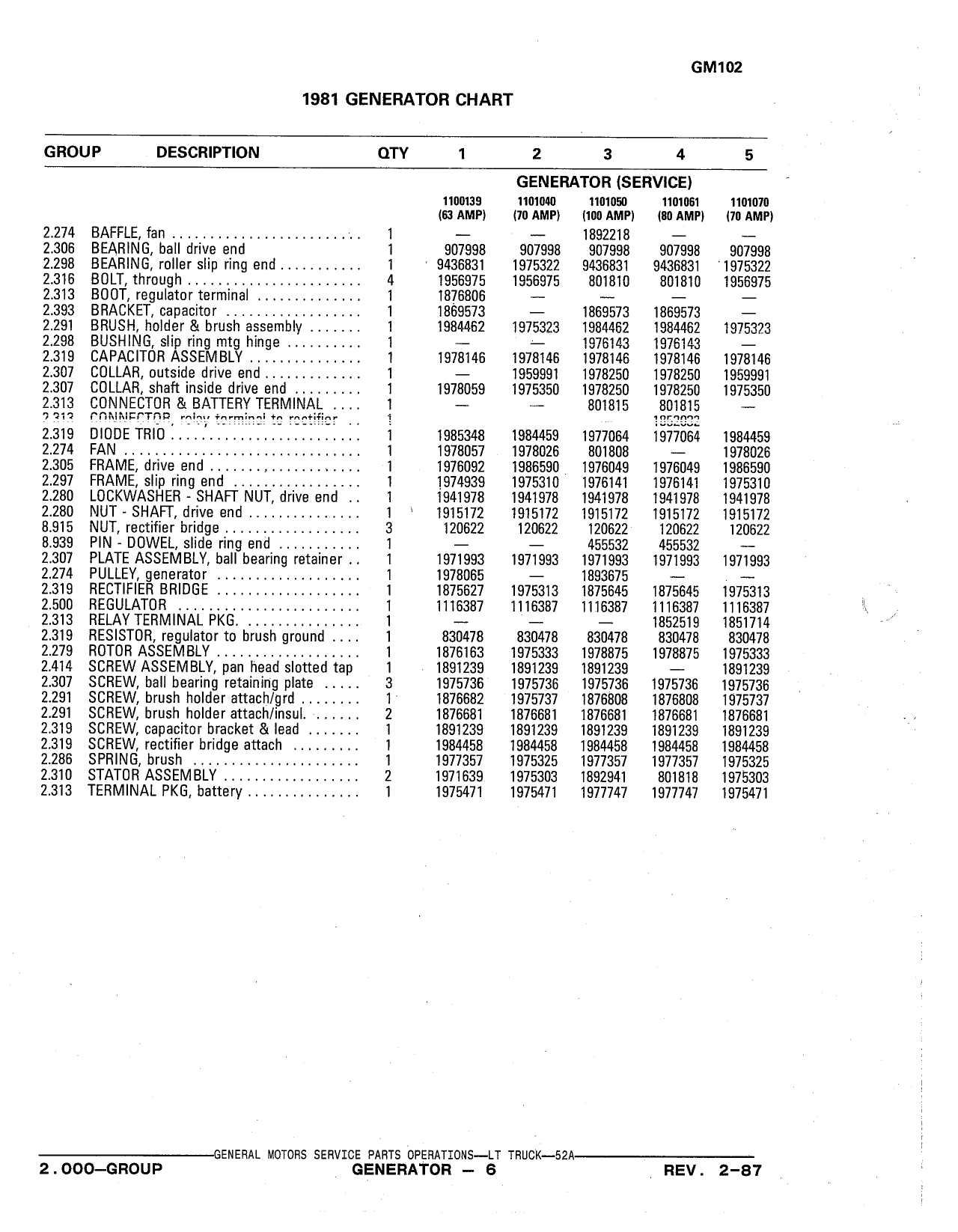

GM102 1981 GENERATOR CHART GROUP DESCRIPTION QTY 1 2 3 4 5 GENERATOR SERVICE V H00135 l10llI40 H01050 H01061 II01070 AMP 70 AMP IllI AMP 80 AMF 170 AMP 2 274 BAFFLE fan 4 1 1892218 2 306 BEARING ball drive end 1 907998 907998 907998 907998 907998 2 298 BEARING roller slip ring end 4 1 9436831 1975322 9436831 9436831 1975322 2 316 BOLT through 4 1956975 1956975 801810 801810 1956975 2 313 BOOT regulator terminal 1 1876806 2 393 BRACKET capacitor 1 1869573 1869573 1869573 2 291 BRUSH holder brush assembly 1 1984462 1975323 1984462 1984462 1975323 2 298 BUSHING slip ring mtg hinge 1 1976143 1976143 2 319 CAPACITOR ASSEMBL 1 1978146 1978146 1978146 1978146 1978146 2 307 COLLAR outside drive end 1 1959991 1978250 1978250 1959991 2 307 COLLAR shaft inside drive end 1 1978059 1975350 1978250 1978250 1975350 2 313 CONNECTOR 84 BATTERY TERMINAL 1 801815 801815 an rnnim r rn r r 4 cct r r I ragga 2 319 DIODE TRIO 1 1985348 1984459 1977064 1977064 1984459 2 274 FAN 1 1978057 1978026 801808 1978026 2 305 FRAME drive end 1 1976092 1986590 1976049 1976049 1986590 2 297 FRAME slip ring end 1 1974939 1975310 1976141 1976141 1975310 2 280 LOCKWASHER SHAFT NUT drive end 1 1941978 1941978 1941978 1941978 1941978 2 280 NUT SHAFT drive end 1 1915172 1915172 1915172 1915172 1915172 8 915 NUT rectifier bridge 3 120622 120622 120622 120622 120622 8 939 PIN DOWEL slide ring end 1 455532 455532 2 307 PLATE ASSEMBLY ball bearing retainer 1 1971993 1971993 1971993 1971993 1971993 2 274 PULLEV generator 1 1978065 1893675 2 319 RECTIFIER BRIDGE 1 1875627 1975313 1875645 1875645 1975313 2 500 REGULATOR 1 1116387 1116387 1116387 1116387 1116387 2 313 RELAY TERMINAL PKG 1 1852519 1851714 2 319 RESISTOR regulator to brush ground 1 830478 830478 830478 830478 830478 2 279 ROTOR ASSEMBLY 1 1876163 1975333 1978875 1978875 1975333 2 414 SCREW ASSEMBLY pan head slotted tap 1 1891239 1891239 1891239 1891239 2 307 SCREW ball bearing retaining plate 3 1975736 1975736 1975736 1975736 1975736 2 291 SCREW brush holder attach grd 1 1876682 1975737 1876808 1876808 1975737 2 291 SCREW brush holder attach insul 2 1876681 1876681 1876681 1876681 1876681 V 7 2 319 SCREW capacitor bracket lead 1 1891239 1891239 1891239 1891239 1891239 2 319 SCREW rectifier bridge attach 1 1984458 1984458 1984458 1984458 1984458 2 286 SPRING brush 1 1977357 1975325 1977357 1977357 1975325 2 310 STATOR ASSEMBLY 2 1971639 1975303 1892941 801818 1975303 2 313 TERMINAL PKG battery 1 1975471 1975471 1977747 1977747 1975471 GENERAL MGTORS SERVICE PARTS 0PERATI0llS LT TRUCK 524 2 000 GROUP GENERATOR 6 REV 2 87
